Product Information
Synonyms
10442, 10443

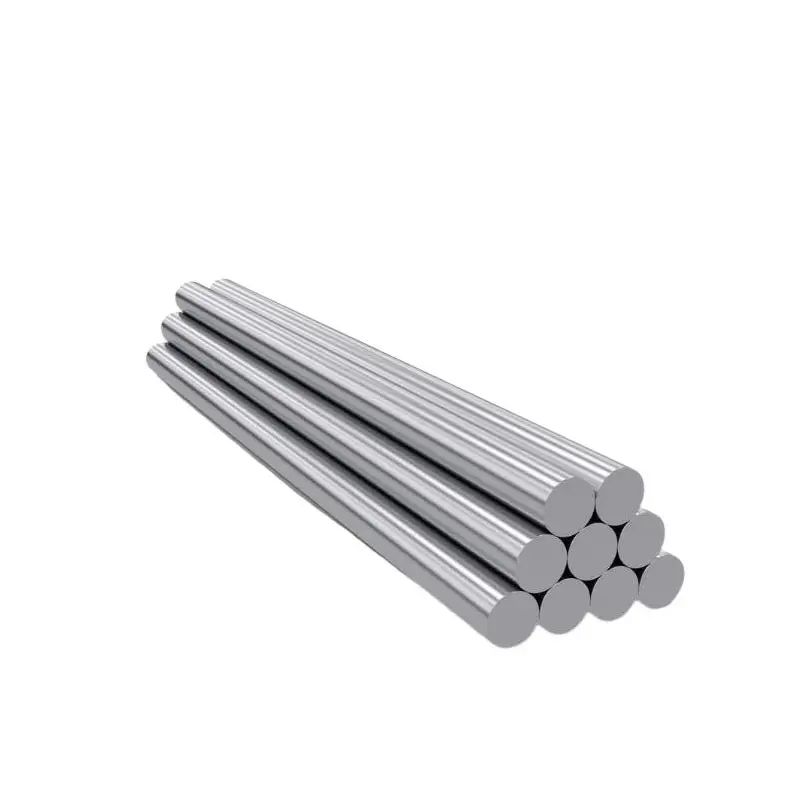

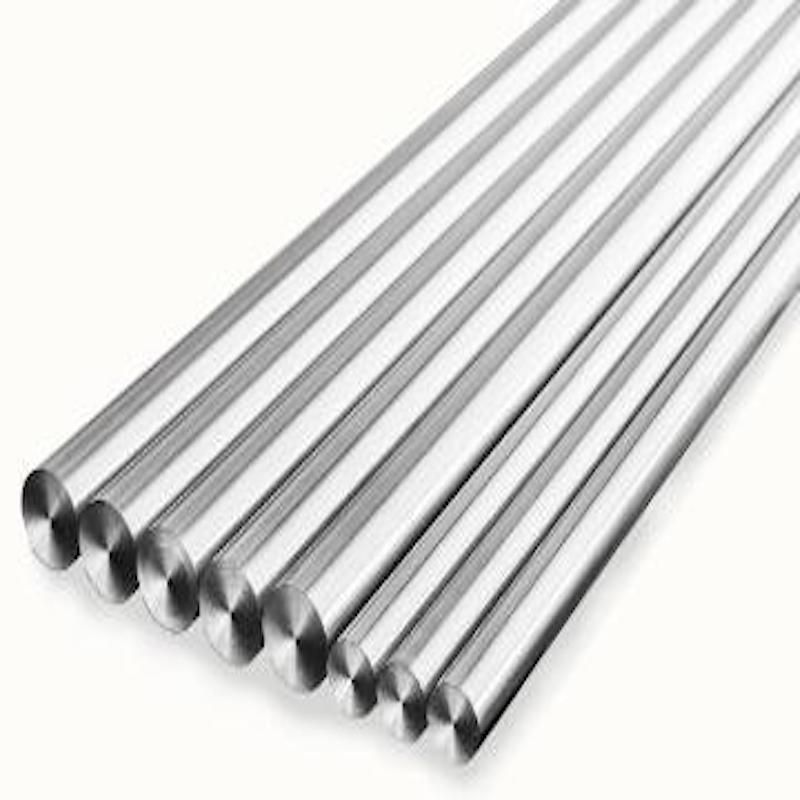

Specifications Of Zirconium Rod & Zirconium Bar
| Size | 1-50mm Dia. x L |
| Material | R60702 |
| Standard | ASTM B550 |
| Purity | ≥99% |
ATT can design and manufacture according to customer's requirements beyond the regular size.
Chemical Composition for Zirconium Rod & Zirconium Bar
| Grades | Main component | Impurity content(wt% ≤) | |||||||
| Zr+Hf（wt≥%） | Hf | Fe+Cr | Sn | Nb | C | N | O | H | |
| R60700 | 99.2 | 4.5 | 0.2 | - | - | 0.05 | 0.025 | 0.10 | 0.005 |
| R60702 | 99.2 | 4.5 | 0.2 | - | - | 0.05 | 0.025 | 0.16 | 0.005 |
Zirconium Rod & Zirconium Bar Properties
| Molecular Weight | 91.22 |
| Appearance | Gray to black powder |
| Melting Point | 1852 °C |
| Boiling Point | 3580 °C |
| Density | 6506 kg/m3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 40.0 microhm-cm @ 20 oC °C |
| Electronegativity | 1.4 Paulings |
| Heat of Fusion | 5.50 Cal/gm mole |
| Heat of Vaporization | 120 K-Cal/gm atom at 4377 °C |
| Poisson's Ratio | 0.34 |
| Specific Heat | 0.0671 Cal/g/K @ 25 oC °C |
| Tensile Strength | 230 MPa |
| Thermal Conductivity | 0.227 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 5.7 µm·m-1·K-1 |
| Vickers Hardness | 903 MPa |
| Young's Modulus | 88 GPa |
Applications of Zirconium Rod & Zirconium Bar
Packaging of Zirconium Rod & Zirconium Bar
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Zirconium Rod & Zirconium Bar is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Zr |
| MDL Number | MFCD00011303 |
| EC No. | 231-176-9 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23995 |
| SMILES | [Zr] |
| InchI Identifier | InChI=1S/Zr |
| InchI Key | QCWXUUIWCKQGHC-UHFFFAOYSA-N |
