Product Information
Synonyms
——

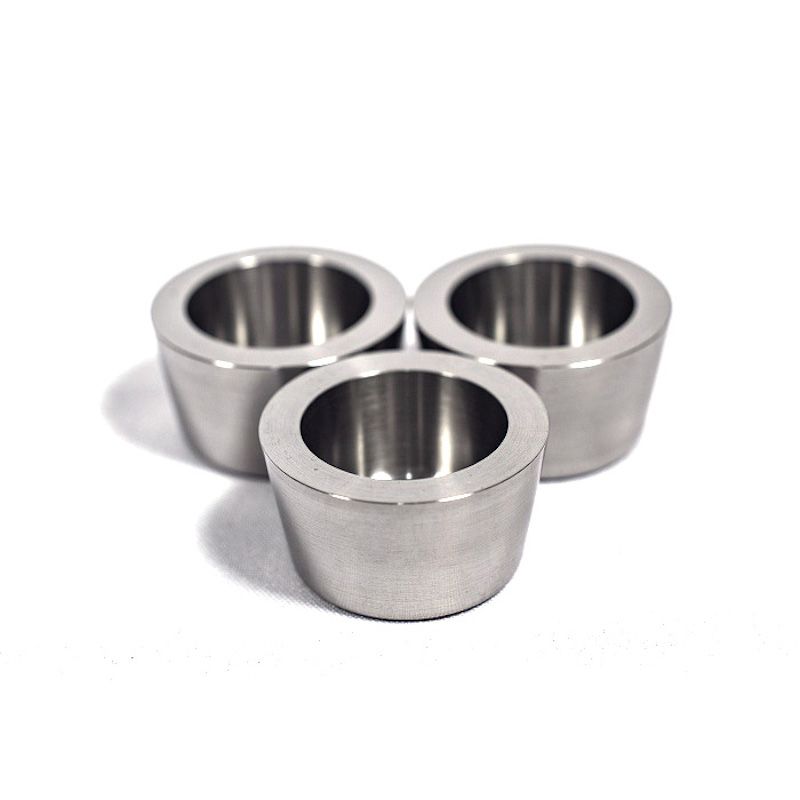

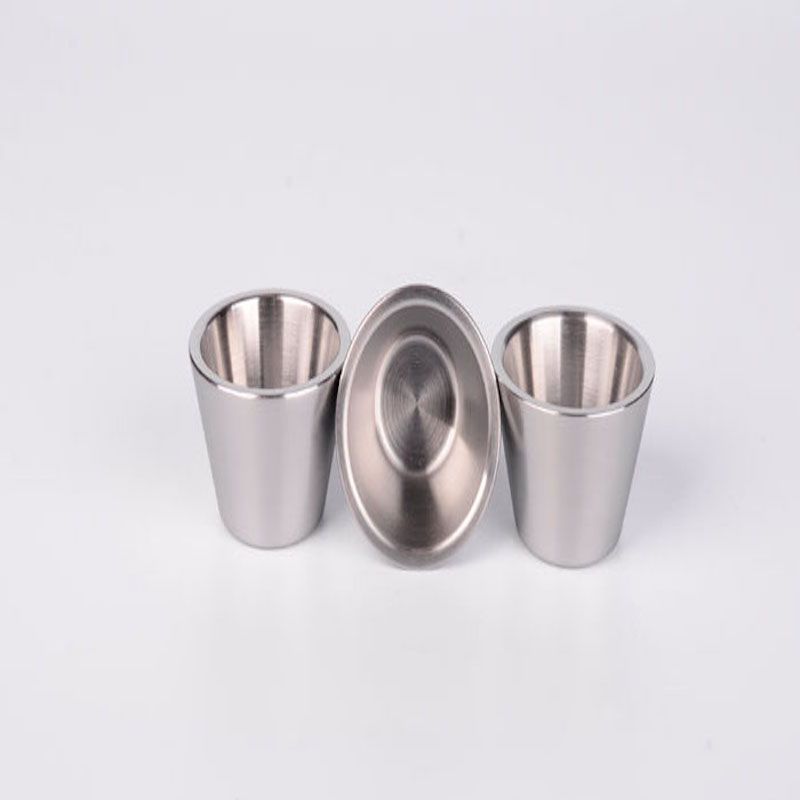

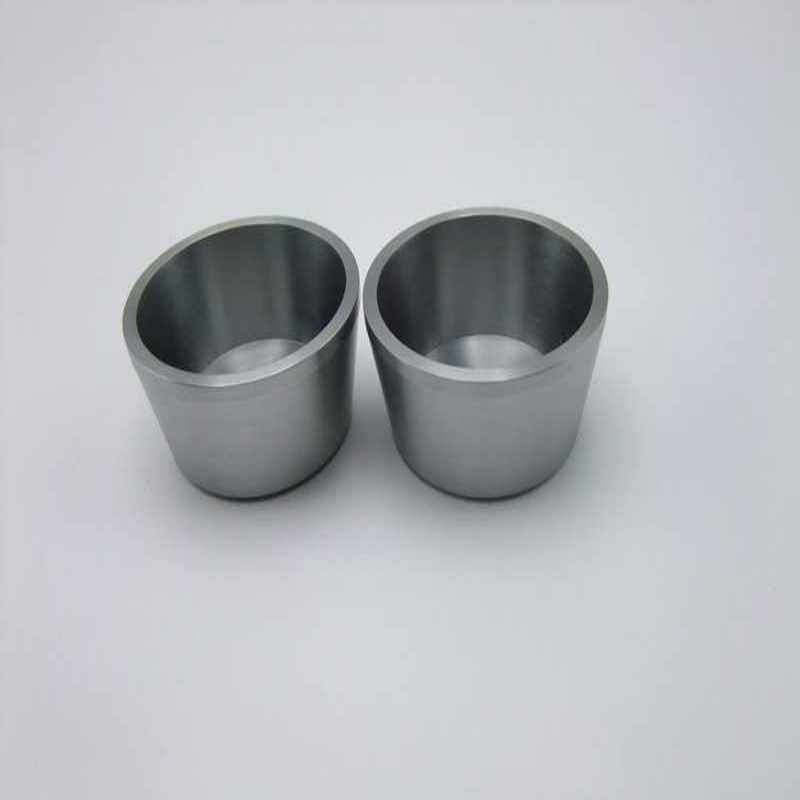

Specifications of Zirconium Crucible
| Size | Customize |
| volume | 10-2000ml |
| Shape | Circle, Cone, Rectangle, etc |
| Material | R60702 |
| Standard | ASTM B550 |
| Purity | ≥99% |
ATT can manufacture the products according to customers’drawings and specific requirements.
Chemical Composition for Zirconium Crucible
| Grades | Main component | Impurity content(wt% ≤) | |||||||
| Zr+Hf | Hf | Fe+Cr | Sn | Nb | C | N | O | H | |
| R60700 | 99.2 | 4.5 | 0.2 | - | - | 0.05 | 0.025 | 0.10 | 0.005 |
| R60702 | 99.2 | 4.5 | 0.2 | - | - | 0.05 | 0.025 | 0.16 | 0.005 |
Zirconium Crucible Properties
| Molecular Weight | 91.22 |
| Appearance | Gray to black powder |
| Melting Point | 1852 °C |
| Boiling Point | 3580 °C |
| Density | 6506 kg/m3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 40.0 microhm-cm @ 20 oC °C |
| Electronegativity | 1.4 Paulings |
| Heat of Fusion | 5.50 Cal/gm mole |
| Heat of Vaporization | 120 K-Cal/gm atom at 4377 °C |
| Poisson's Ratio | 0.34 |
| Specific Heat | 0.0671 Cal/g/K @ 25 oC °C |
| Tensile Strength | 230 MPa |
| Thermal Conductivity | 0.227 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 5.7 µm·m-1·K-1 |
| Vickers Hardness | 903 MPa |
| Young's Modulus | 88 GPa |
Applications of Zirconium Crucible
Packaging of Zirconium Crucible
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Zirconium Crucible is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Zr |
| MDL Number | MFCD00011303 |
| EC No. | 231-176-9 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23995 |
| SMILES | [Zr] |
| InchI Identifier | InChI=1S/Zr |
| InchI Key | QCWXUUIWCKQGHC-UHFFFAOYSA-N |
