产品代码 : ME-Ti-5N-TP

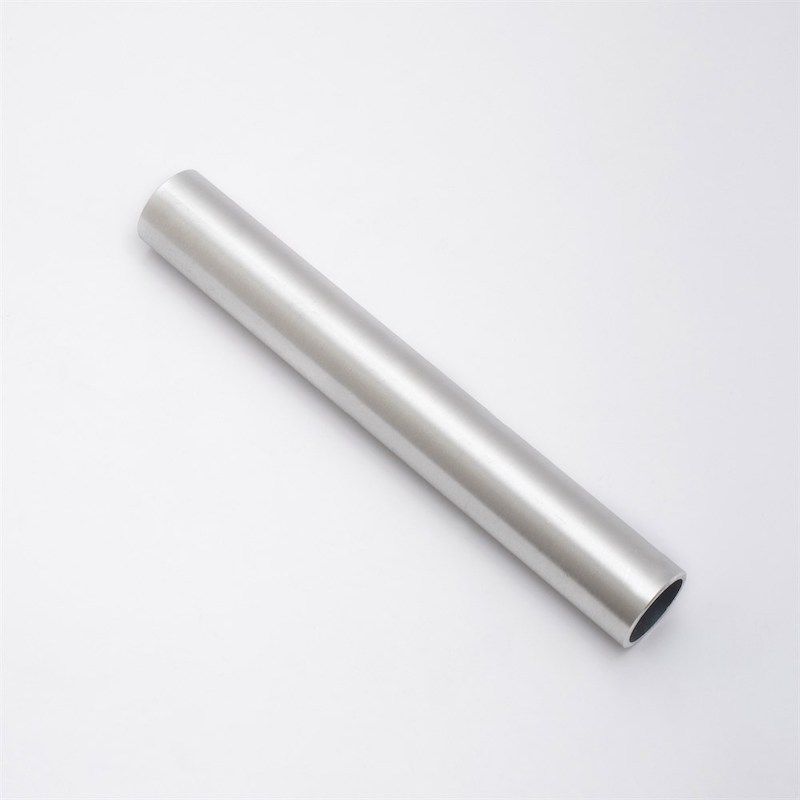

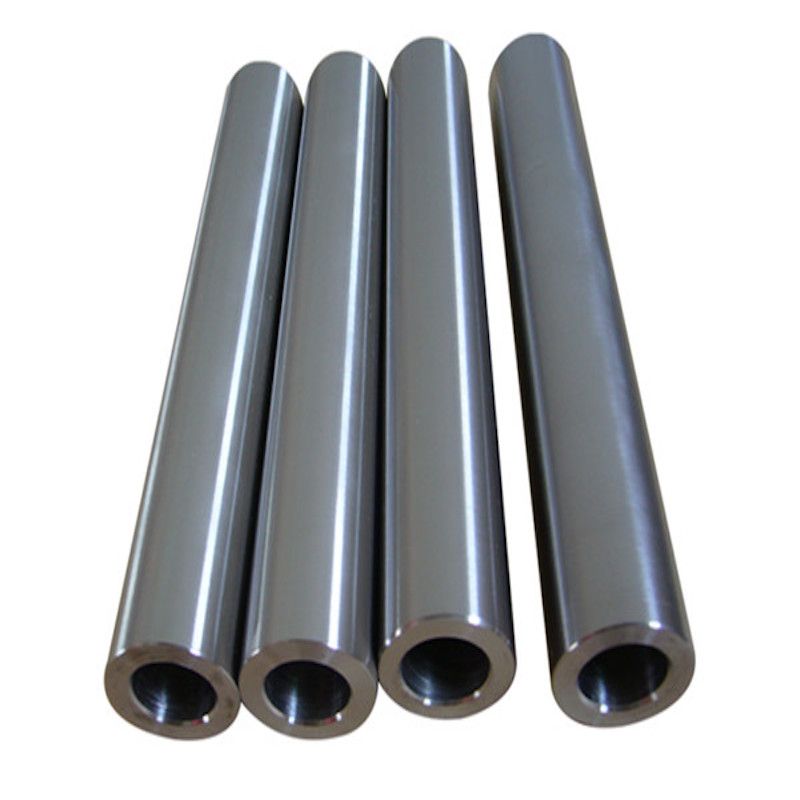

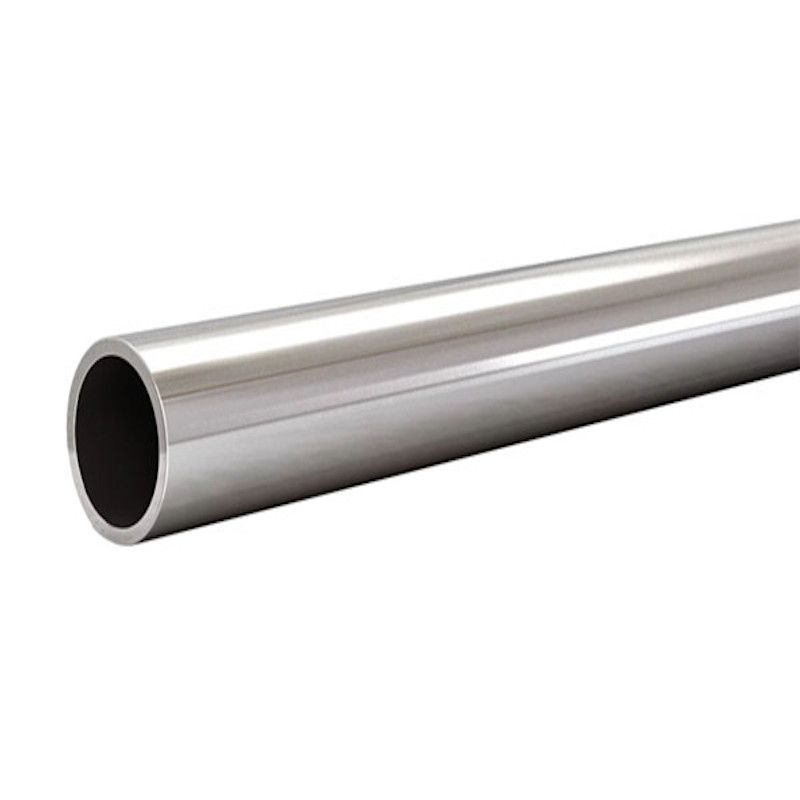

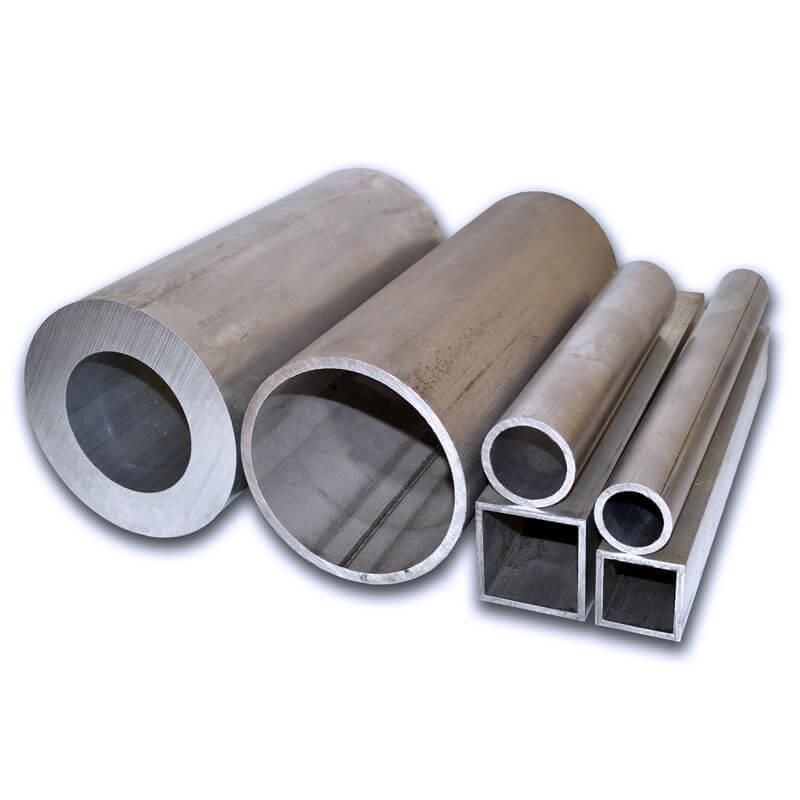

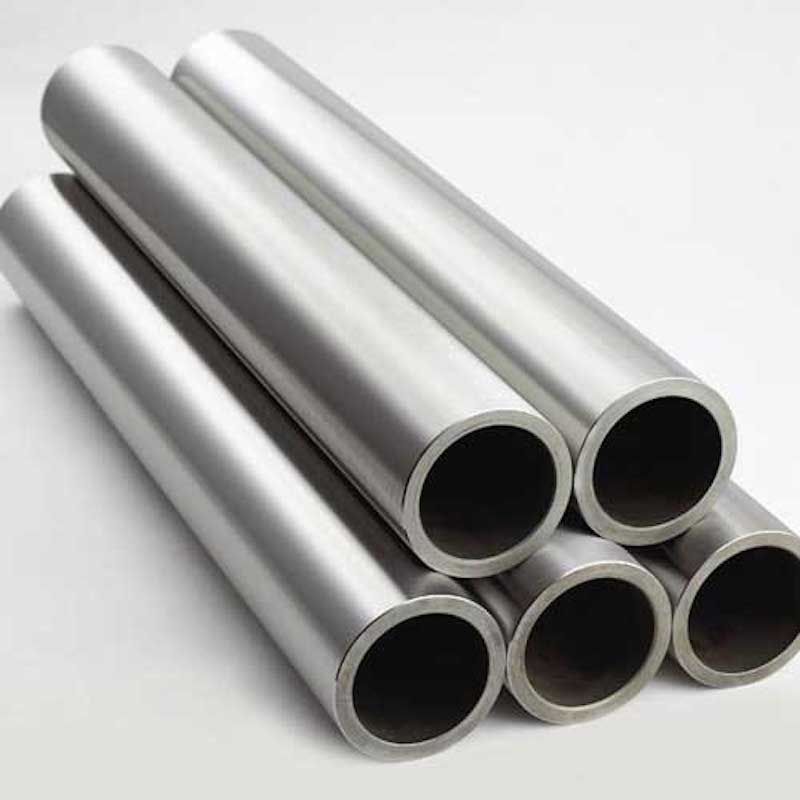

The titanium tube has light weight, high strength and good mechanical properties. Widely used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, snake tube heat exchanger, condensing tube, evaporator and conveying tube, etc. ATT offers seamless and welded titanium tubes.
CAS #: 7440-32-6
Linear Formula: Ti
MDL Number: MFCD00011264
EC No.: 231-142-3
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
The titanium tube has light weight, high strength and good mechanical properties. Widely used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, snake tube heat exchanger, condensing tube, evaporator and conveying tube, etc. ATT offers seamless and welded titanium tubes.
Synonyms
——
Specifications Of Titanium Tubing & Titanium Pipe
| Size | OD: 3-50 mm; WT: 0.6-50mm; L: 100-15000mm |
| Material | Titanium |
| Standard | ASTM B861, ASTM B862 |
| Purity | ≥99% |
Dimensions of Titanium Tubing & Titanium Pipe
| Regular Titanium Tubing & Titanium Pipe | |||
| Products | Dimension (mm) | ||
| Outside Diameter | Thickness | Length | |
| Titanium Seamless Tube | 3-50 | 0.6-2 | 100-15000 |
| Ti Sheet | 3-40 | 0.5-50 | 100-15000 |
ATT can design and manufacture according to customer's requirements beyond the regular dimension.
Chemical Composition for Titanium Tubing & Titanium Pipe
| Grade | Ti(%,Min.) | Impurities (%, Max. ) | Other Impurities | |||||
| N | C | H | Fe | O | Content per element | Total content | ||
| Grade1 | Residuals | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 0.1 | 0.4 |
| Grade2 | Residuals | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.1 | 0.4 |
| Grade3 | Residuals | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 0.1 | 0.4 |
| Grade4 | Residuals | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 0.1 | 0.4 |
Titanium Tubing & Titanium Pipe Properties
| Molecular Weight | 47.86 (Note: all properties listed are for bulk titanium metal) |
| Appearance | Silvery |
| Melting Point | 1668 °C |
| Boiling Point | 3560 °C |
| Density | 4.54 g/cm3 |
| Solubility in H2O | N/A |
| Crystal Phase / Structure | Hexagonal |
| Electrical Resistivity | 42.0 microhm-cm @ 20 °C |
| Electronegativity | 1.45 Paulings |
| Heat of Fusion | 14.15 kJ/mol |
| Heat of Vaporization | 425 kJ/mol |
| Poisson's Ratio | 0.32 |
| Specific Heat | 0.125 Cal/g/K @ 25 °C |
| Tensile Strength | 140 MPa |
| Thermal Conductivity | 21.9 W/(m·K) @ 298.2 K |
| Thermal Expansion | 8.6 µm·m-1·K-1 (25 °C) |
| Vickers Hardness | 830–3420 MPa |
| Young's Modulus | 116 GPa |
Applications of Titanium Tubing & Titanium Pipe
Be used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, snake tube heat exchanger, condensing tube, evaporator and conveying tube, etc.
Packaging of Titanium Tubing & Titanium Pipe
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Titanium Tubing & Titanium Pipe is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Ti |
| MDL Number | MFCD00011264 |
| EC No. | 231-142-3 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23963 |
| SMILES | [Ti] |
| InchI Identifier | InChI=1S/Ti |
| InchI Key | RTAQQCXQSZGOHL-UHFFFAOYSA-N |
