产品代码 : ME-Ti-5N-SP
Titanium plates are mainly used in the manufacture of different vessels, reactors, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as titanium cathode, power plant condenser and environmental pollution control device. At high temperature, titanium plate is easy to react with O, H, N and other elements in the air and Si, Al, Mg and other elements in the embedded material, forming a surface pollution layer on the surface of the casting, which makes its excellent physical and chemical properties deteriorate, hardness increases, plasticity, elasticity decreases, brittleness increases.
CAS #: 7440-32-6
Linear Formula: Ti
MDL Number: MFCD00011264
EC No.: 231-142-3
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
Titanium plates are mainly used in the manufacture of different vessels, reactors, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as titanium cathode, power plant condenser and environmental pollution control device. At high temperature, titanium plate is easy to react with O, H, N and other elements in the air and Si, Al, Mg and other elements in the embedded material, forming a surface pollution layer on the surface of the casting, which makes its excellent physical and chemical properties deteriorate, hardness increases, plasticity, elasticity decreases, brittleness increases.
Synonyms
——

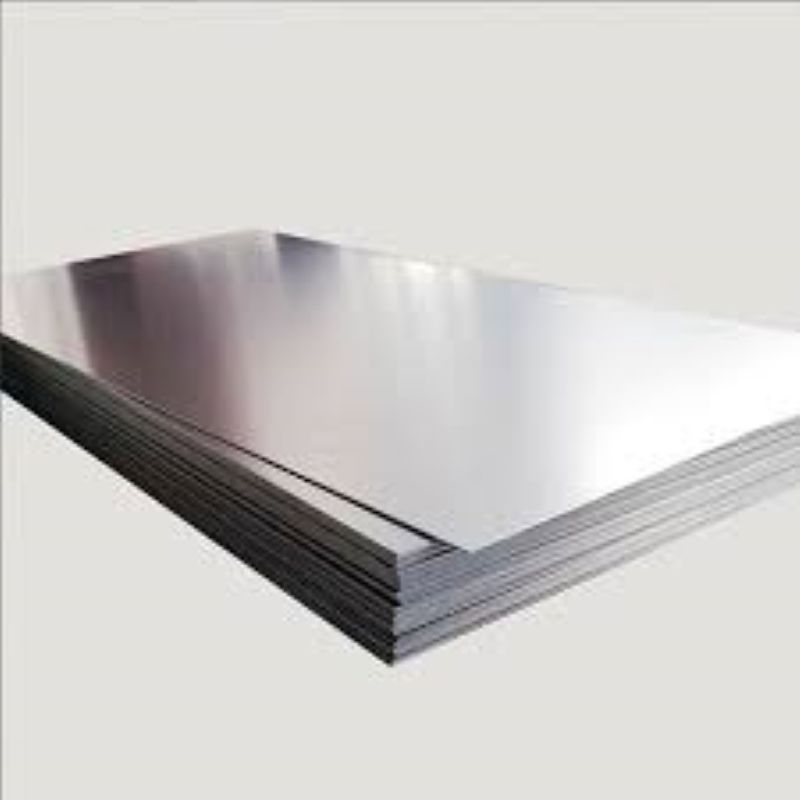

Specifications of Titanium Sheet & Titanium Plate
| Size | 0.5–100 mm T x 20–2500 mm W x 20-6000 L |
| Material | Titanium |
| Standard | ASTM |
| Purity | ≥99.5% |
Dimensions of Titanium Sheet & Titanium Plate
| Regular Titanium Sheet & Plate Dimension | |||
| Products | Dimension (mm) | ||
| Thickness | (Max) Width | (Max)Length | |
| Ti Plate | 5-8 | 2000 | 4000 |
| 8-100 | 2500 | 6000 | |
| Ti Sheet | 0.5-0.8 | 1000 | 2000 |
| 0.8-5 | 1000 | 3000 | |
ATT can design and manufacture according to customer's requirements beyond the regular dimension.
Chemical Composition for Titanium Sheet & Plate
| Grade | Ti(%,Min.) | Impurities (%, Max. ) | Other Impurities | |||||
| N | C | H | Fe | O | Content per element | Total content | ||
| Grade1 | Residuals | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 0.1 | 0.4 |
| Grade2 | Residuals | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.1 | 0.4 |
| Grade3 | Residuals | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 0.1 | 0.4 |
| Grade4 | Residuals | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 0.1 | 0.4 |
Titanium Sheet & Titanium Plate Properties
| Molecular Weight | 47.86 (Note: all properties listed are for bulk titanium metal) |
| Appearance | Silvery |
| Melting Point | 1668 °C |
| Boiling Point | 3560 °C |
| Density | 4.54 g/cm3 |
| Solubility in H2O | N/A |
| Crystal Phase / Structure | Hexagonal |
| Electrical Resistivity | 42.0 microhm-cm @ 20 °C |
| Electronegativity | 1.45 Paulings |
| Heat of Fusion | 14.15 kJ/mol |
| Heat of Vaporization | 425 kJ/mol |
| Poisson's Ratio | 0.32 |
| Specific Heat | 0.125 Cal/g/K @ 25 °C |
| Tensile Strength | 140 MPa |
| Thermal Conductivity | 21.9 W/(m·K) @ 298.2 K |
| Thermal Expansion | 8.6 µm·m-1·K-1 (25 °C) |
| Vickers Hardness | 830–3420 MPa |
| Young's Modulus | 116 GPa |
Applications of Titanium Sheet & Titanium Plate
Titanium plates are mainly used in the manufacture of different vessels, reactors, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry.
Packaging of Titanium Sheet & Titanium Plate
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Titanium Sheet & Titanium Plate is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Ti |
| MDL Number | MFCD00011264 |
| EC No. | 231-142-3 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23963 |
| SMILES | [Ti] |
| InchI Identifier | InChI=1S/Ti |
| InchI Key | RTAQQCXQSZGOHL-UHFFFAOYSA-N |
