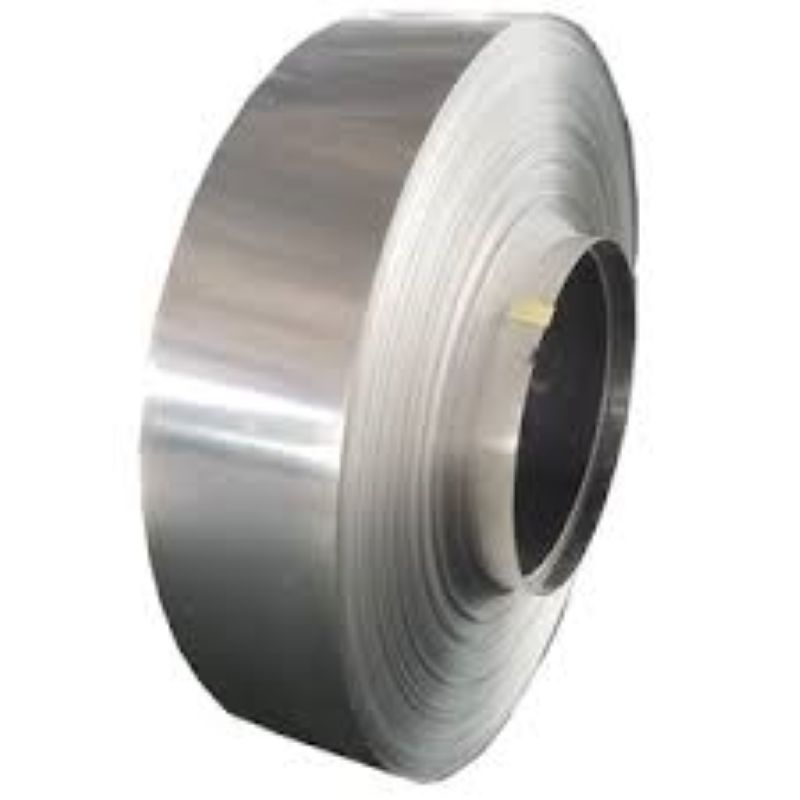

Rhenium Strip (Re Strip)

Product Information

Rhenium is one of the rarest elements in the Earth's crust and the last stable element discovered. The free element has the third-highest melting point and highest boiling point of any element. Pure Rhenium Rod (99.99% pure), offers high ductility and strength, designed for various applications such as satellite positioning nozzles, aerospace propulsion components and other demanding parts that must withstand extreme thermal shock, high temperature, and stress applications. The largest use of Rhenium is for jet engine and chemical industry's catalytic uses being next-most important.

ATT specializes in producing high purity Rhenium Strips. ATT also casts any of the rare earth metals and most other advanced materials into rod, bar or plate form, as well as other machined shapes and through other processes such as nanoparticles and in the form of solutions and organometallics. ATT produces to many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. We also produce Rhenium as rod, ingot, powder, pieces, disc, granules, wire, and in compound forms, such as oxide. Other shapes are available by request.

Synonyms

Rhenium Rod Specification

Dimensions

Size：Customized

Per your request or drawing

We can customized as required

Rhenium Strip Products

Materials	Re
TUBE	√
Sheet	√
Strip	√
TUBE	√
Sputtering Target	√
Tube	√

Other: Spherical Rhenium Powder, Rhenium crucibles, Rhenium nuts, Rhenium bolts, Rhenium heating elements, and Rhenium shielding screens.

Properties（Theoretical）

Molecular Weight	186.21
Appearance	Silvery-gray
Melting Point	3180 °C
Boiling Point	5627 °C
Density	21.02 gm/cc
Solubility in H2O	N/A
Electrical Resistivity	19.3 microhm-cm @ 20 °C
Electronegativity	1.9 Paulings
Heat of Fusion	7.9 Cal/gm mole
Heat of Vaporization	152 K-Cal/gm atom at 5627 °C
Poisson's Ratio	0.3
Specific Heat	0.0329 Cal/g/K @ 25 °C
Tensile Strength	80,000 psi
Thermal Conductivity	0.480 W/cm/K @298.2 K
Thermal Expansion	6.2 µm/(m·K)
Vickers Hardness	2450 MPa
Young's Modulus	463 GPa

Applications of Rhenium Strip

Alloying Agent with Refractory Metals, Cathode Cups, Grid Heaters, Mass Spectrometer Filaments.

Packing of Rhenium Strip

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’ Rhenium Strip is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
