产品代码 : ME-Re-5N-SF
Rhenium is one of the rarest elements in the Earth's crust and the last stable element discovered. The free element has the third-highest melting point and highest boiling point of any element. Pure Rhenium Rod (99.99% pure), offers high ductility and strength, designed for various applications such as satellite positioning nozzles, aerospace propulsion components and other demanding parts that must withstand extreme thermal shock, high temperature, and stress applications. The largest use of Rhenium is for jet engine and chemical industry's catalytic uses being next-most important.
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
Rhenium is one of the rarest elements in the Earth's crust and the last stable element discovered. The free element has the third-highest melting point and highest boiling point of any element. Pure Rhenium Rod (99.99% pure), offers high ductility and strength, designed for various applications such as satellite positioning nozzles, aerospace propulsion components and other demanding parts that must withstand extreme thermal shock, high temperature, and stress applications. The largest use of Rhenium is for jet engine and chemical industry's catalytic uses being next-most important.
Synonyms
10307, 10308, 10309, 13983, 13984
Rhenium Rod Specification
Dimensions
Size：Thickness can range from 0.003" to approximately 2mm for all metals.
Per your request or drawing
We can customized as required
Rhenium Foil Products
| Materials | Re |
| Plate | √ |
| Sheet | √ |

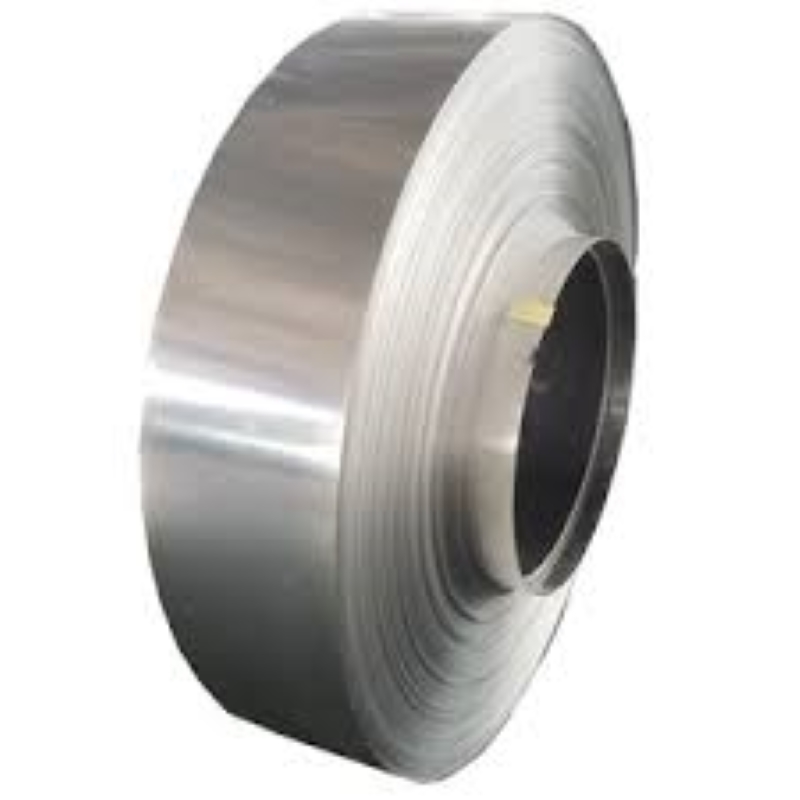

| Strip | √ |
| Rod | √ |
| Sputtering Target | √ |

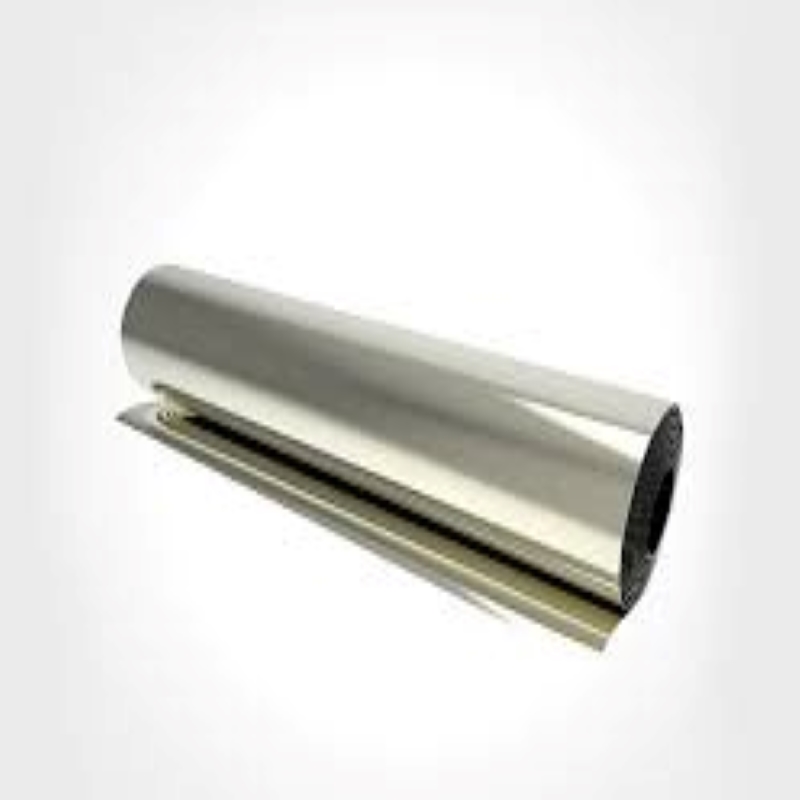

| Tube | √ |
Other: Spherical Rhenium Powder, Rhenium crucibles, Rhenium nuts, Rhenium bolts, Rhenium heating elements, and Rhenium shielding screens.
Chemical Composition:
Purity：5N（99.999%）
| Element | Value |
| Al | 3 PPM |
| Ni | 3 PPM |
| B | 1 PPM |
| Fe | 45 PPM |
| Mn | 2 PPM |
| W | 1 PPM |
| Co | 3 PPM |
| Mo | 30 PPM |
| Ca | 1 PPM |
| Cr | 3 PPM |
| Ti | 2 PPM |
| Cu | 2 PPM |
| K | 1 PPM |
| Mg | 1 PPM |
| Zr | 2 PPM |
We can customized as required
Properties（Theoretical）
| Molecular Weight | 186.21 |
| Appearance | Foil |
| Melting Point | 3180 °C |
| Boiling Point | 5627 °C |
| Density | 21.02 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 19.3 microhm-cm @ 20 °C |
| Electronegativity | 1.9 Paulings |
| Heat of Fusion | 7.9 Cal/gm mole |
| Heat of Vaporization | 152 K-Cal/gm atom at 5627 °C |
| Poisson's Ratio | 0.3 |
| Specific Heat | 0.0329 Cal/g/K @ 25 °C |
| Tensile Strength | 80,000 psi |
| Thermal Conductivity | 0.480 W/cm/K @298.2 K |
| Thermal Expansion | 6.2 µm/(m·K) |
| Vickers Hardness | 2450 MPa |
| Young's Modulus | 463 GPa |
| Superconductivity critical temperature ( K ) | 1.7 |
| Temperature coefficient ( K⁻¹ ) | 0.00450 @0-100°C |
Applications of Rhenium Foil
Rhenium Foil are mainly used as electrode materials in high temperature and harsh conditions, for production of electronic components and ultrahigh temperature heater tube with metal evaporation in semiconductor and electronics industry.The largest use of Rhenium is for jet engine and chemical industry's catalytic uses being next-most important.
Packing of Rhenium Foil
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Rhenium Foil is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Re |
| CAS | 7440-15-5 |
| MDL Number | MFCD00011195 |
| EC No. | 231-124-5 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23947 |
| SMILES | [Re] |
| InchI Identifier | InChI=1S/Re |
| InchI Key | WUAPFZMCVAUBPE-UHFFFAOYSA-N |
