产品代码 : 3D-Nb-CU-PO1

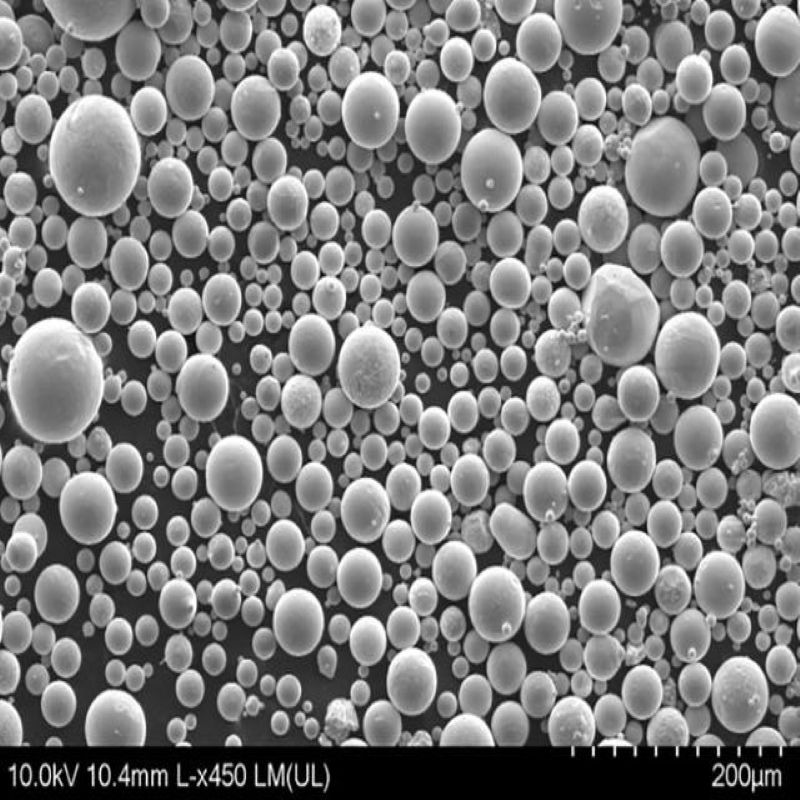

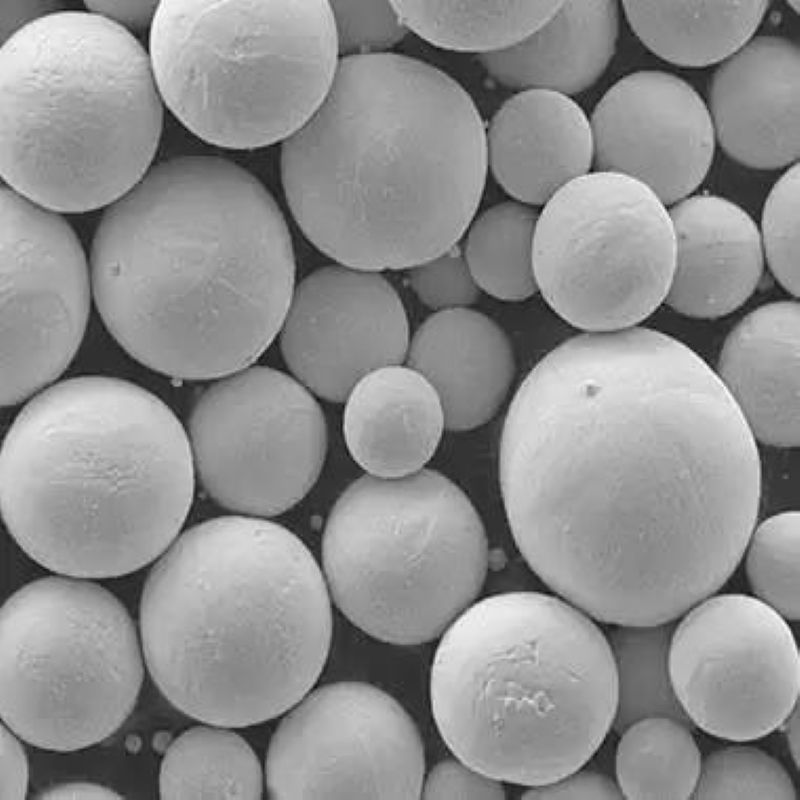

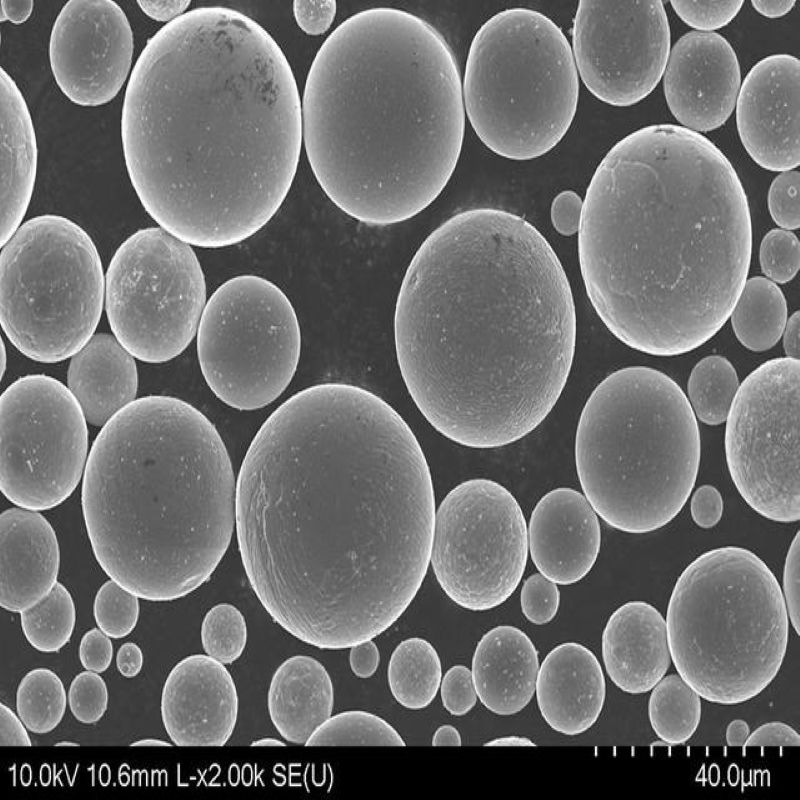

Niobium is the lightest refractory metal.Niobium is the refractory metal with high melting point, high temperature strength and specific strength, but no radioactivity. It is the preferred thermal protection material and structural material for aerospace engines. Radio frequency plasma spheroidized niobium powder has the characteristics of high sphericity, good fluidity, high purity, high bulk density, full density inside the particle, and no hollow powder. It is widely used in palladium materials, vacuum coating and thermal spraying coating, cold spraying, and other fields.
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Synonyms
Nb spherical particles, niobium Spherical particles, niobium spherical powders, niobium metal spherical powder
Spherical Niobium Powder Characteristics
High purity (99.9% min.)
Low oxygen (can be less than 600 ppm)
High sphericity (98% min.)
Smooth surface, no satellite
Uniform particle size distribution, excellent flowability (Hall Flow Rate ≤ 15.0 s/50 g)
High bulk density (≥ 4.5 g/cm3) and tap density (≥ 5.5 g/cm3)
Spherical Niobium Powder Particle Size
0-15μm ,5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 45-150μm ,75-150μm.
(Various granularities can be customized according to customer requirements)
Spherical Niobium Powder Applicable processes
Laser/electron beam additive manufacturing (SLM/EBM, 3D printing)
Direct laser deposition (DLD)
Powder hot isostatic pressing (HIP)
Metal injection molding (MIM)
Powder metallurgy (PM)
Laser cladding (LC), etc.
Spherical Niobium Powder Chemical Composition
| Chemical Composition - by ICP-AES | Wt % |
| Nb | ≥ 99.9 |
| Ta | ＜0.05 |
| Cu | ＜0.001 |
| Al | ＜0.002 |
| W | ＜0.005 |
| Mn | ＜0.002 |
| Mo | ＜0.003 |
| Si | ＜0.002 |
| Fe | ＜0.005 |
| Cr | ＜0.002 |
| Ni | ＜0.002 |
| Ti | ＜0.002 |
| Gas Impurities | |
| O | ≤0.06 |
| N | ≤0.003 |
| C | ≤0.03 |
| P | </= 0.002 |
Physical Properties
| Form: | Powder | |
| Color: | Black grey | |
| Melting Point: | 2468°C | |
| Boiling Point: | 4742°C | |
| Density: | 8.57 g/cm3 | |
| Density (g/cm3) | Hall Flow Rate (s/50g) | |
| Apparent Density | Tap Density | Value |
| >4.5 | >5.5 | </= 15.0 |

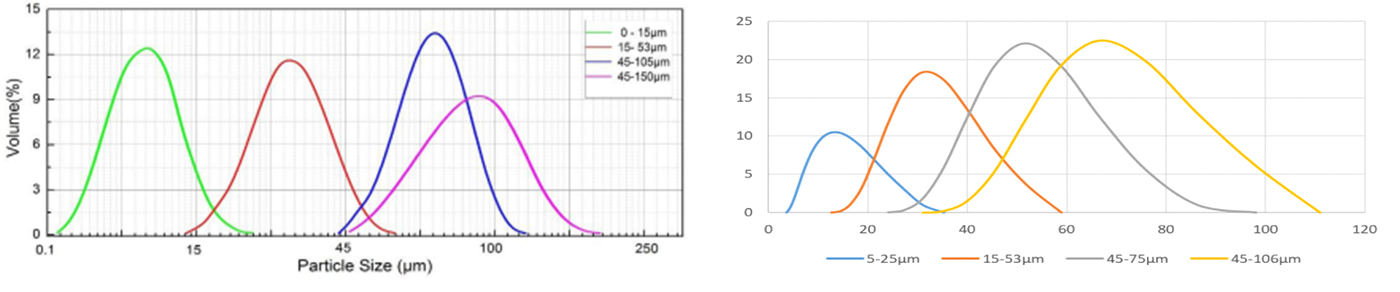

Spherical Niobium Powder Particle Size Description
● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)
● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)
● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)
● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)
● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)
● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)
● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)
● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)
(Various granularities can be customized according to customer requirements)
Spherical Niobium Powder Packaging
Standard Packing: Vacuum packaging, 1 kg/bag or 2 kg/bag. Iron drums lined with a plastic bag, 25 kg/drum. Special package is available on request.
Chemical Identifiers
| Linear Formula | Nb |
| MDL Number | MFCD00011126 |
| CAS | 7440-03-1 |
| EC No. | 231-113-5 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23936 |
| SMILES | [Nb] |
| InchI Identifier | InChI=1S/Nb |
| InchI Key | GUCVJGMIXFAOAE-UHFFFAOYSA-N |
