产品代码 : ME-V -5N-PO
Vanadium is a hard, silver-grey metallic element. It is a ductile transition metal with a natural resistance to corrosion and stability against alkalis, acids and salt water. Vanadium is found in over 60 different minerals including vanadinite, carnotite, roscoelite and patronite.
ATT specializes in producing high purity Vanadium Powder with the smallest possible average grain sizes for use in preparation of pressed and bonded sputtering targets and in Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) processes including Thermal and Electron Beam (E-Beam) Evaporation, Low Temperature Organic Evaporation, Atomic Layer Deposition (ALD), Metallic-Organic and Chemical Vapor Deposition (MOCVD). Powders are also useful in any application where high surface areas are desired such as water treatment and in fuel cell and solar applications. Nanoparticles also produce very high surface areas. Our standard powder particle sizes average in the range of - 325 mesh, - 100 mesh, 10-50 microns and submicron (< 1 micron). We can also provide many materials in the nanoscale range. ATT produces to many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available.
We also produce Vanadium as rod, ingot, pieces, pellets, disc, granules, wire, and in compound forms, such as oxide. Other shapes are available by request.
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
Vanadium is a hard, silver-grey metallic element. It is a ductile transition metal with a natural resistance to corrosion and stability against alkalis, acids and salt water. Vanadium is found in over 60 different minerals including vanadinite, carnotite, roscoelite and patronite.
ATT specializes in producing high purity Vanadium Powder with the smallest possible average grain sizes for use in preparation of pressed and bonded sputtering targets and in Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) processes including Thermal and Electron Beam (E-Beam) Evaporation, Low Temperature Organic Evaporation, Atomic Layer Deposition (ALD), Metallic-Organic and Chemical Vapor Deposition (MOCVD). Powders are also useful in any application where high surface areas are desired such as water treatment and in fuel cell and solar applications. Nanoparticles also produce very high surface areas. Our standard powder particle sizes average in the range of - 325 mesh, - 100 mesh, 10-50 microns and submicron (< 1 micron). We can also provide many materials in the nanoscale range. ATT produces to many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available.
We also produce Vanadium as rod, ingot, pieces, pellets, disc, granules, wire, and in compound forms, such as oxide. Other shapes are available by request.
Synonyms
Vanadium particles, Vanadium microparticles, Vanadium micropowder, Vanadium micro powder, Vanadium micron powder, Vanadium submicron powder, Vanadium sub-micron powder,

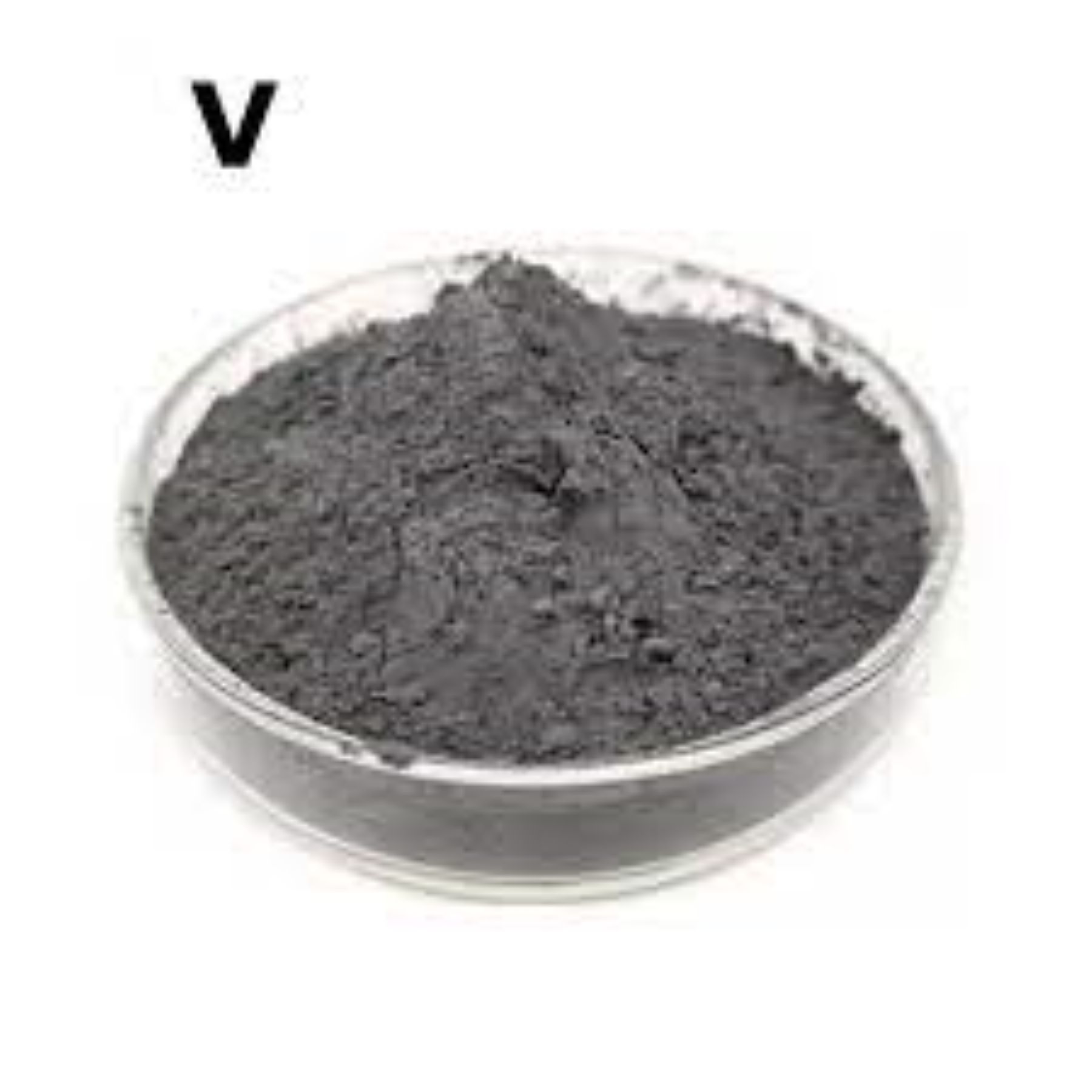

Vanadium Powder
Size：Our standard powder particle sizes average in the range of - 325 mesh, - 100 mesh, 10-50 microns and submicron (< 1 micron). We can also provide many materials in the nanoscale range.
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Molecular Weight | 163 |
| Appearance | Silver-Grey |
| Melting Point | 1890 °C |
| Boiling Point | 3380 °C |
| Density | 6.11 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 25.4 microhm-cm @ 20 oC °C |
| Electronegativity | 1.6 Paulings |
| Heat of Vaporization | 106 K-Cal/gm atom at 3380 °C |
| Poisson's Ratio | 0.37 |
| Specific Heat | 0.116 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.307 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 8.4 µm·m-1·K-1 |
| Vickers Hardness | N/A |
| Young's Modulus | 128 GPa |
| Superconductivity critical temperature ( K ) | 5.4000 |
| Temperature coefficient ( K⁻¹ ) | 0.00390 @0-100°C |
| Thermal emf against Pt (cold 0C - hot 100C) ( mV ) | 0.63 |
Chemical Composition
| Element | Value |
| Al | 100 PPM |
| Si | 1000 PPM |
| Fe | 1000 PPM |
| C | 340 PPM |
We can customized as required
Applications of Vanadium Powder
Applications. Vanadium is mainly used to make ferrovanadium and as a steel additive. It is also used in aerospace, metallurgical and defense industries.
Packing of Vanadium Powder
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Vanadium Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | V |
| CAS | 7440-62-2 |
| MDL Number | MFCD00011453 |
| EC No. | 231-171-1 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23990 |
| SMILES | [V] |
| InchI Identifier | InChI=1S/V |
| InchI Key | LEONUFNNVUYDNQ-UHFFFAOYSA-N |
