产品代码 : ME-Nb-5N-WI
Niobium has good plasticity at room temperature, so it can be rolled, drawn, spinning, bending and other deformation processing under the condition of no heating. The raw material of producing niobium wire is usually niobium rod or niobium ingot, which is made from niobium powder by powder metallurgy or smelting. Preparation of niobium wire by melting method: niobium powder - molding - sintering - electron beam melting - blank - rolling - heat treatment - wire drawing - cleaning - inspection; Preparation of niobium wire by powder metallurgy: niobium powder - isostatic pressing - vacuum vertical melting sintering - rolling - intermediate annealing - wire drawing - cleaning - inspection.
Niobium wire is mainly used in chemical anticorrosion field, aerospace, superconductivity, atomic energy, medicine and other fields.
CAS #: 7440-03-1
Linear Formula: Nb
MDL Number: MFCD00011126
EC No.: 231-113-5
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
Niobium has good plasticity at room temperature, so it can be rolled, drawn, spinning, bending and other deformation processing under the condition of no heating. The raw material of producing niobium wire is usually niobium rod or niobium ingot, which is made from niobium powder by powder metallurgy or smelting. Preparation of niobium wire by melting method: niobium powder - molding - sintering - electron beam melting - blank = rolling - heat treatment - wire drawing - cleaning - inspection; Preparation of niobium wire by powder metallurgy: niobium powder - isostatic pressing - vacuum vertical melting sintering - rolling - intermediate annealing - wire drawing - cleaning - inspection.
Niobium wire is mainly used in chemical anticorrosion field, aerospace, superconductivity, atomic energy, medicine and other fields.
Synonyms
IRMM526C, IRMM525C, GF92256172, GF18750810, GF19608475, GF04603047, GF52671528, GF79016205, 262765, 10264, 10265, 14335

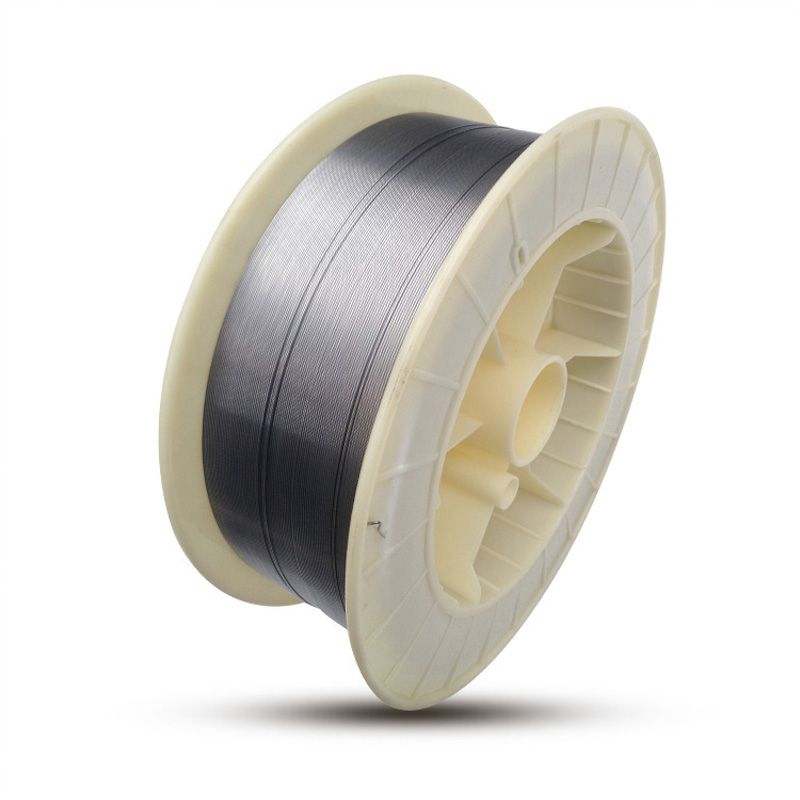

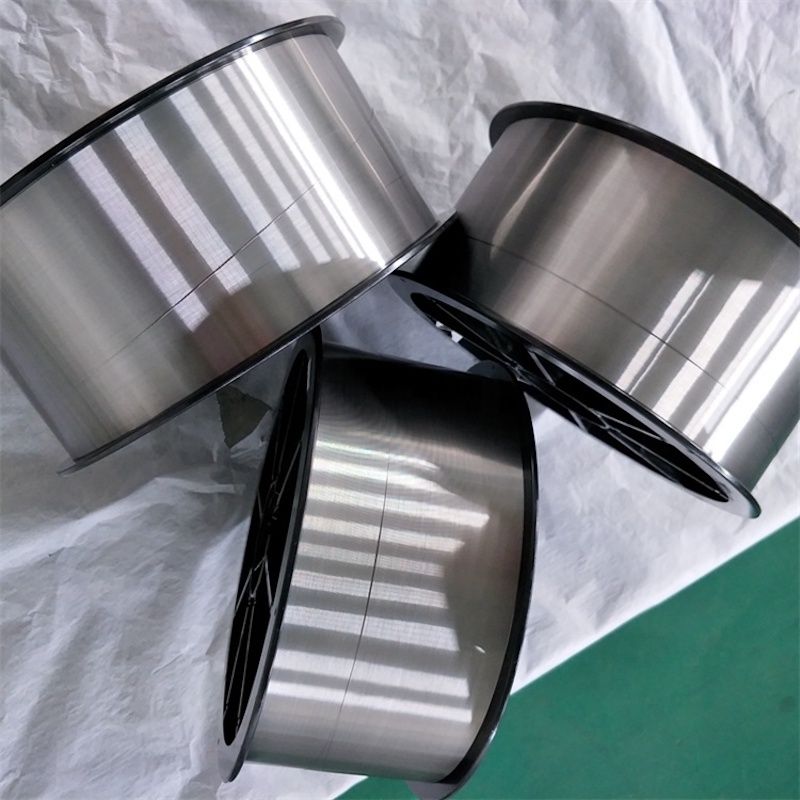

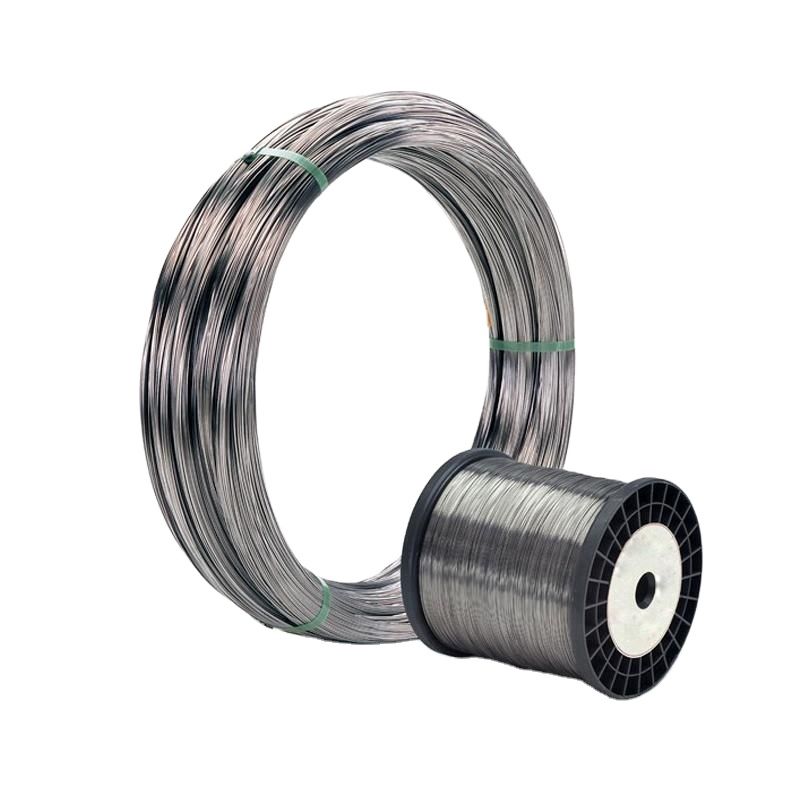

Specifications Of Niobium Wire
| Dimensions | Dia.: 0.5 – 3mm |
| Material | R04200, R04210 |
| Standard | ASTM B392 |
| Purity | ≥ 99% |
ATT can design and manufacture according to customer's requirements beyond the regular dimension.
Chemical Composition of Niobium Wire
| Brand | Main component | Impurity content(≤) | |||||||||||||
| Nb | Zr | Hf | Ti | C | N | O | H | Ta | Fe | Si | W | Ni | Mo | Cr | |
| R04200 | Residuals | 0.02 | 0.02 | 0.02 | 0.01 | 0.01 | 0.015 | 0.0015 | 0.1 | 0.005 | 0.005 | 0.03 | 0.005 | 0.01 | - |
| R04210 | Residuals | 0.02 | 0.02 | 0.03 | 0.01 | 0.01 | 0.025 | 0.0015 | 0.3 | 0.01 | 0.005 | 0.05 | 0.005 | 0.02 | - |
| R04251 | Residuals | 0.8-1.2 | 0.02 | 0.02 | 0.01 | 0.01 | 0.015 | 0.0015 | 0.1 | 0.005 | 0.005 | 0.03 | 0.005 | 0.01 | - |
| R04261 | Residuals | 0.8-1.2 | 0.02 | 0.03 | 0.01 | 0.01 | 0.025 | 0.0015 | 0.5 | 0.01 | 0.005 | 0.05 | 0.005 | 0.05 | - |
| R04295 | Residuals | 0.7 | 9.0-11.0 | 0.7-1.3 | 0.015 | 0.01 | 0.025 | 0.0015 | 0.5 | - | - | 0.5 | - | - | - |
Niobium Wire Properties
| Molecular Weight | 92.9 |
| Appearance | Silvery |
| Melting Point | 2468 °C |
| Boiling Point | 4742 °C |
| Density | 8.57 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 12.5 microhm-cm @ 0 °C |
| Electronegativity | 1.6 Paulings |
| Heat of Fusion | 6.5 Cal/gm mole |
| Heat of Vaporization | N/A |
| Poisson's Ratio | 0.4 |
| Specific Heat | 0.064 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.537 W/cm/K @ 298.2 K |
| Thermal Expansion | 7.3 µm/(m·K) |
| Vickers Hardness | 1320 MPa |
| Young's Modulus | 105 GPa |
Applications of Niobium Wire
Be used in chemical antiseptic field, aerospace, superconductivity, atomic energy, medicine and other fields. It can be used to make anode lead of niobium electrolytic capacitor.
Packaging of Niobium Wire
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Niobium Wire is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Nb |
| MDL Number | MFCD00011126 |
| EC No. | 231-113-5 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23936 |
| SMILES | [Nb] |
| InchI Identifier | InChI=1S/Nb |
| InchI Key | GUCVJGMIXFAOAE-UHFFFAOYSA-N |
