产品代码 : RE-Nd2O3-5N-PO

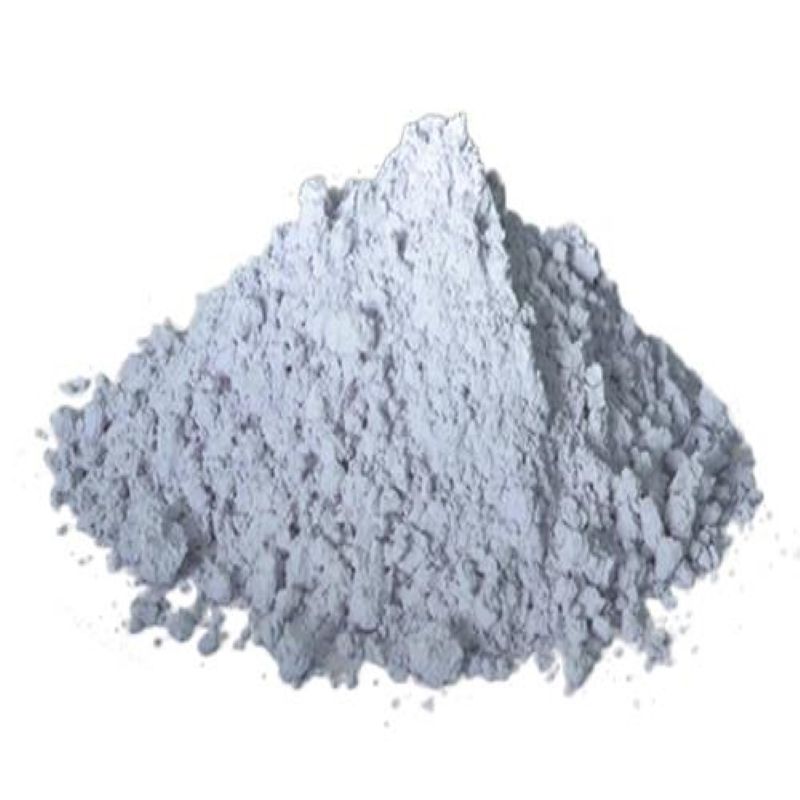

Neodymium Oxide Powder (Nd2O3 Powder) is a kind of metal oxide. It is mainly used as colorant for glass and ceramics, the raw material for manufacturing metal neodymium and the raw material for strong magnetic neodymium iron boron (NdFeB).
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
Neodymium Oxide Powder (Nd2O3 Powder) is a kind of metal oxide. It is mainly used as colorant for glass and ceramics, the raw material for manufacturing metal neodymium and the raw material for strong magnetic neodymium iron boron (NdFeB). Neodymium Oxide Nd2O3 is applied in petroleum and environment protection catalysts, mischmetal, polishing powders and Rare Earth fertilizers. ATT provides Neodymium Oxide Nd2O3 at a competitive price, The purity and particle size can be customized.
ATT special offers Nano Neodymium Oxide Powder, the particle size can be sub-microns. Nano Nd2O3 is a kind of lavender solid powder, which is easy to be damped and absorbs carbon dioxide in the air. It is insoluble in water but soluble in inorganic acid. The crystal structure of Nd2O3 has three types: cubic, triangular and hexagonal. Compared with the traditional Nd2O3, due to the nano size structure and surface of Nd2O3 nano particles, they show the characteristics that the conventional materials do not have in magnetism, optics, electricity and so on.
Synonyms
Dineodymium trioxide, Neodymia, Neodymium oxide, Neodymium oxide (Nd2O3), Neodymium oxide, Nd2O3, Neodymium sesquioxide, Neodymium trioxide, Neodymiumsesquioxide, Neodymium(3+) oxide, Neodymium(III) oxide, Neodymiumoxide, Neodymium oxide REO blue powder, Neodym oxide, Neodymium oxide nano dispersion, Neodymoxid, CAS# 1313-97-9
Neodymium Oxide (Nd2O3) Powder Specifications
Chemical Composition
| Nd2O3/TREO (% min.) | 99.9999 | 99.999 | 99.99 | 99.9 | 99 |
| TREO (% min.) | 99.5 | 99 | 99 | 99 | 99 |
| Loss On Ignition (% max.) | 1 | 1 | 1 | 1 | 1 |
| Rare Earth Impurities | ppm max. | ppm max. | ppm max. | % max. | % max. |
| La2O3/TREO CeO2/TREO Pr6O11/TREO Sm2O3/TREO Eu2O3/TREO Y2O3/TREO | 0.2 0.5 3 0.2 0.2 0.2 | 3 3 5 5 1 1 | 50 20 50 3 3 3 | 0.01 0.01 0.05 0.03 0.01 0.01 | 0.05 0.05 0.5 0.05 0.05 0.03 |
| Non-Rare Earth Impurities | ppm max. | ppm max. | ppm max. | % max. | % max. |
| Fe2O3 SiO2 CaO CuO PbO NiO Cl- | 2 9 5 2 2 2 2 | 5 30 50 1 1 3 10 | 10 50 50 2 5 5 100 | 0.001 0.005 0.005 0.002 0.001 0.001 0.02 | 0.005 0.02 0.01 0.005 0.002 0.001 0.02 |
* Special requirements are available.
Physical Properties – Neodymium Oxide (Nd2O3) Powder
| Appearance Form | Powder |
| Color | Pale white powder |
| Water Solution | .0003 g/100 mL (75°C) |
| Melting Point | 2,233° C (4,051° F) |
| Boiling Point | 3,760° C (6,800° F) |
| Density | 7.24 g/cm3 |
| Exact Mass | 333.803 |
| Monoisotopic Mass | 331.8 |
| Solubility in water: | .0003 g/100 mL (75 °C) |
| Magnetic susceptibility (χ): | +10,200.0·10−6 cm3/mol |
| Crystal structure: | Hexagonal, hP5 |
Neodymium Oxide (Nd2O3) Powder Application
Used in the production of various coloring pigments.
Used to dope glass.
Used to produce solid-state lasers and enamels.
Used as a polymerization catalyst.
Neodymium Oxide, also called Neodymium, is mainly used for glass and capacitors. Colors glass delicate shades ranging from pure violet through wine-red and warm gray. Light transmitted through such glass shows unusually sharp absorption bands. The glass is used in astronomical work to produce sharp bands by which spectral lines may be calibrated. Glass containing neodymium is a laser material in place of ruby to produce coherent light. Adding 1.5% – 2.5% nano neodymium oxide to magnesium alloy or aluminum alloy can improve high temperature performance, air tightness and corrosion resistance of the alloy, which is widely used as aerospace materials.
Neodymium Oxide (Nd2O3) Packing
Standard Packing: Packed in Bags. 50 lbs. bags, poly-lined fiber drums and bulk bags
Special package is available on request.
Neodymium Oxide (Nd2O3) is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
Chemical Identifiers
| Linear Formula | Nd2O3 |
| CAS | 1313-97-9 |
| MDL Number | MFCD00011134 |
| EC No. | 215-214-1 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 4196641 |
| IUPAC Name | neodymium(3+); oxygen(2-) |
| SMILES | [Nd+3].[Nd+3].[O-2].[O-2].[O-2] |
| InchI Identifier | InChI=1S/2Nd.3O/q2*+3;3*-2 |
| InchI Key | PLDDOISOJJCEMH-UHFFFAOYSA-N |
