产品代码 : ME-Mo-5N-BR

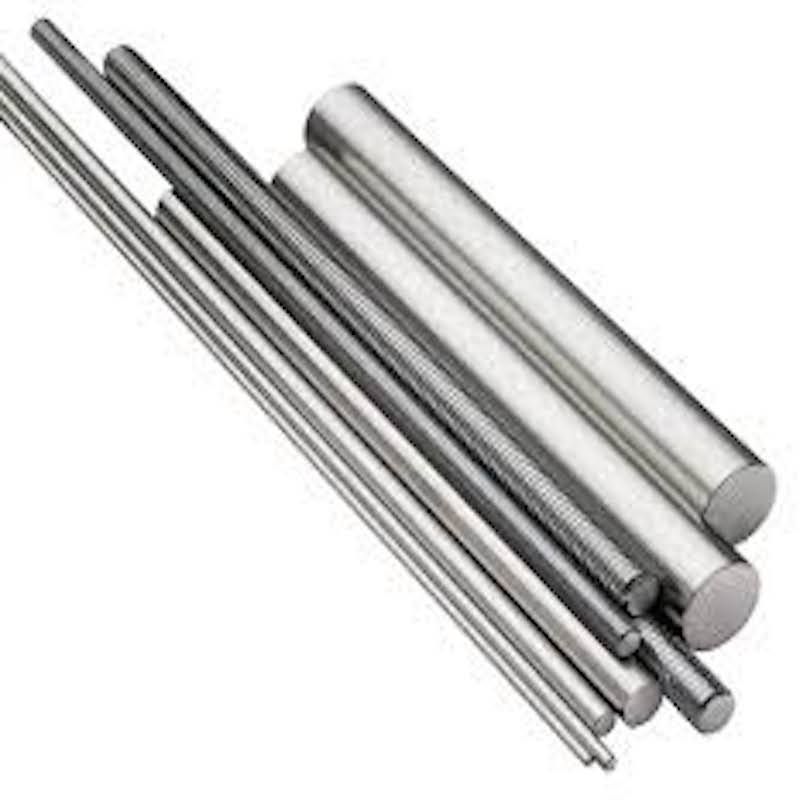

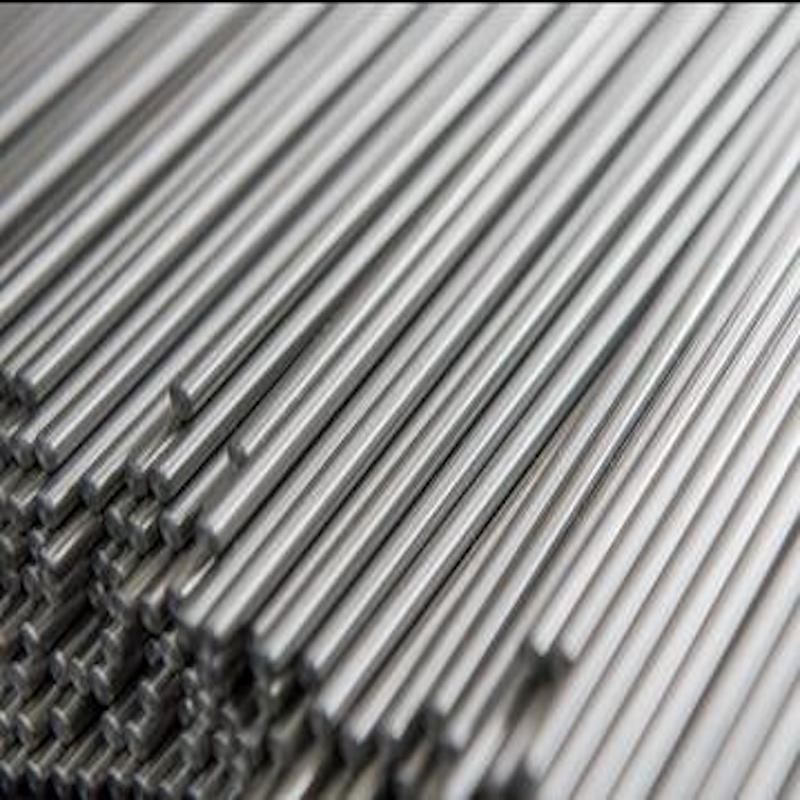

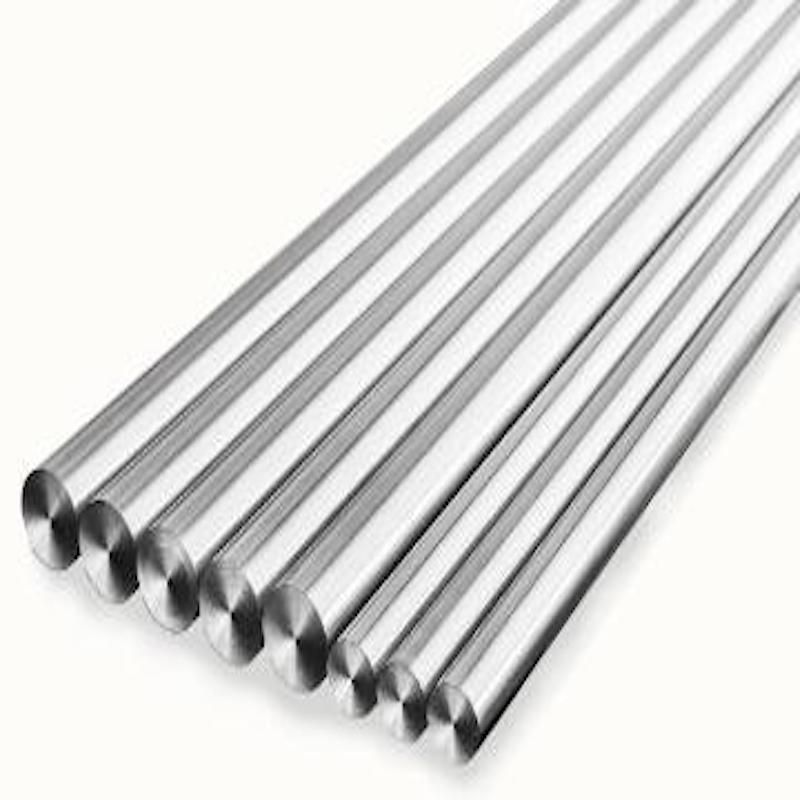

Molybdenum rod has the characteristics of high melting point, good thermal conductivity and small thermal expansion. At high temperature, it has the characteristics of oxidation resistance, high strength and no deformation during processing.ATT specializes in producing high purity uniform shaped Molybdenum Rod with the highest possible density 99.9+% Ultra High Purity Metallic Rodsand smallest possible average grain sizes.
CAS #: 7439-98-7
Linear Formula: Mo
MDL Number: MFCD00003465
EC No.: 231-107-2
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
Molybdenum rod has the characteristics of high melting point, good thermal conductivity and small thermal expansion. At high temperature, it has the characteristics of oxidation resistance, high strength and no deformation during processing.ATT specializes in producing high purity uniform shaped Molybdenum Rod with the highest possible density 99.9+% Ultra High Purity Metallic Rodsand smallest possible average grain sizes.In addition, ATT produces pure molybdenum and lanthanide-doped molybdenum rods, which are designed for use in high-temperature applications where materials with smaller cross-sections retain ductility after recrystallization.
ATT can manufacture molybdenum rods of any length or cut to the length required by the customer.
| Molybdenum Rod Properties | |
| Molecular Weight | 95.94 |
| Appearance | Silvery |
| Melting Point | 2623 °C |
| Boiling Point | 4639 °C |
| Density | 10280 kg/m3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 5.2 microhm-cm @ 0 °C |
| Electronegativity | 1.9 Paulings |
| Heat of Fusion | 6.6 Cal/gm mole |
| Heat of Vaporization | 128 K-Cal/gm atom at 4612 °C |
| Poisson's Ratio | 0.31 |
| Specific Heat | 0.0599 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 1.38 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 4.8 µm·m-1·K-1 |
| Vickers Hardness | 1530 MPa |
| Young's Modulus | 329 GPa |
Synonyms
GF54490574, GF60430766, 10032, 10033, 10034, 11475
Specifications Of Molybdenum Rod
| Diameter (inch) | Length (inch) | Diameter Tolerance (inch) | Length Tolerance (inch) |
| 0.08 – 0.40 | <315> | ±0.005 | +0.08, -0 |
| 0.40 – 0.80 | <118> | ±0.010 | +0.08, -0 |
| 0.80 – 4.00 | <78> | ±0.015 | +0.08", -0 |
| >4.00 | <40> | ±0.025 | +0.08, -0 |
In addition, we can also customize according to your requirements.
Applications Of Molybdenum Rod
* Used in steel-making additives, electric vacuum parts, gas pipes, lead-wire, sidebar, daily-use glass, optical glass, insulation material, and glass fiber
* Used to stretch into molybdenum wire and molybdenum electrode
Packaging Of Molybdenum Rod
Standard Packing:
Sealed bags in carton boxes. Special package is available on request.
ATTs’ Molybdenum Rod is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Mo |
| CAS | 7439-98-7 |
| MDL Number | MFCD00003465 |
| EC No. | 231-107-2 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23932 |
| SMILES | [Mo] |
| InchI Identifier | InChI=1S/Mo |
| InchI Key | ZOKXTWBITQBERF-UHFFFAOYSA-N |
