产品代码 : ME-In-5N-SF
ATT specializes in producing Indium High Purity Foil in many thicknesses and sizes for numerous industrial uses and provides health and occupational safety information for this product. Most foils are produced from cast ingots for use in coating and thin film Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) processes including Thermal and Electron Beam (E-Beam) Evaporation, Low Temperature Organic Evaporation, Atomic Layer Deposition (ALD), Organometallic and Chemical Vapor Deposition (MOCVD) for specific applications such as fuel cells and solar energy. Thickness can range from 0.003" to approximately 2mm for all metals. Some metals can also be rolled down as thin as 0.001" for use as an evaporation source in microelectronics, optics, magnetics, MEMS, and hard resistant coatings. Piece sizes are available up to approximately 7" maximum width. Maximum lengths of about 20" can be obtained with a nominal thickness between about 0.005" and 0.020" for thin film deposition on glass or metal substrates. Materials are produced using crystallization, solid state and other ultra high purification processes such as sublimation. ATT specializes in producing custom compositions for commercial and research applications and for new proprietary technologies. ATT also casts any of the rare earth metals and most other advanced materials into rod, bar, or plate form, as well as other machined shapes and through other processes such as nanoparticles and in the form of solutions and organometallics. We also produce Indium as rods, powder and plates. Other shapes are available by request.
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Product Information
ATT specializes in producing Indium High Purity Foil in many thicknesses and sizes for numerous industrial uses and provides health and occupational safety information for this product. Most foils are produced from cast ingots for use in coating and thin film Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) processes including Thermal and Electron Beam (E-Beam) Evaporation, Low Temperature Organic Evaporation, Atomic Layer Deposition (ALD), Organometallic and Chemical Vapor Deposition (MOCVD) for specific applications such as fuel cells and solar energy. Thickness can range from 0.003" to approximately 2mm for all metals. Some metals can also be rolled down as thin as 0.001" for use as an evaporation source in microelectronics, optics, magnetics, MEMS, and hard resistant coatings. Piece sizes are available up to approximately 7" maximum width. Maximum lengths of about 20" can be obtained with a nominal thickness between about 0.005" and 0.020" for thin film deposition on glass or metal substrates. Materials are produced using crystallization, solid state and other ultra high purification processes such as sublimation. ATT specializes in producing custom compositions for commercial and research applications and for new proprietary technologies. ATT also casts any of the rare earth metals and most other advanced materials into rod, bar, or plate form, as well as other machined shapes and through other processes such as nanoparticles and in the form of solutions and organometallics. We also produce Indium as rods, powder and plates. Other shapes are available by request.
Synonyms
357294, 264040, 357286, 326631, 357278, 11382, 11383, 11384, 11385, 11386, 12206, 13982, 38371
Indium Foil Specification
Dimensions
Size: Thickness can range from 0.003" to approximately 2mm for all metals. Some metals can also be rolled down as thin as 0.001" for use as an evaporation source in microelectronics, optics, magnetics, MEMS, and hard resistant coatings.
Per your request or drawing
We can customized as required
Indium Foil Products
| Materials | In |

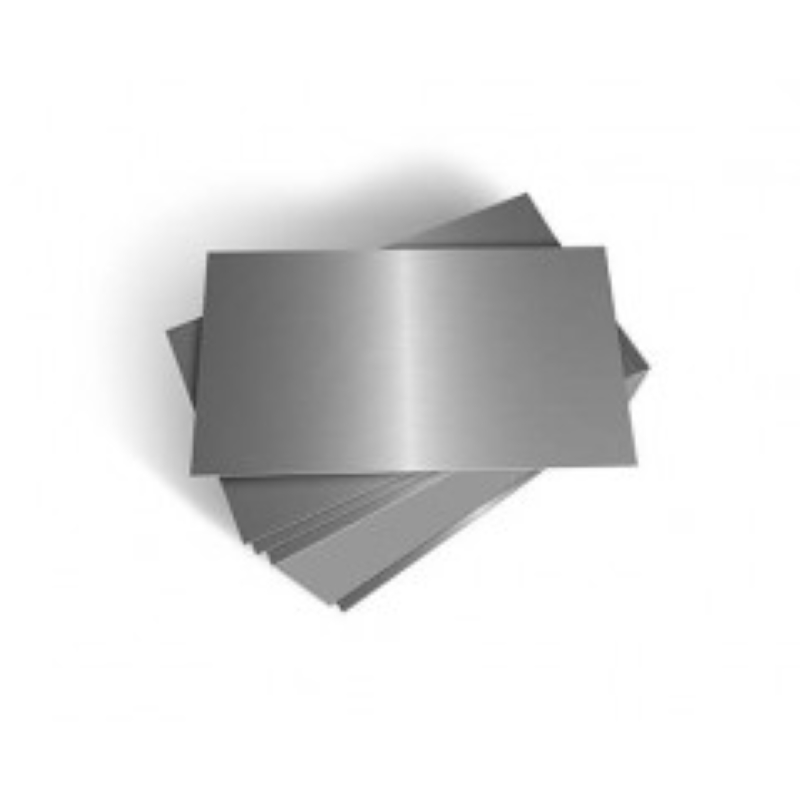

| Plate | √ |
| Sheet | √ |
| Strip | √ |

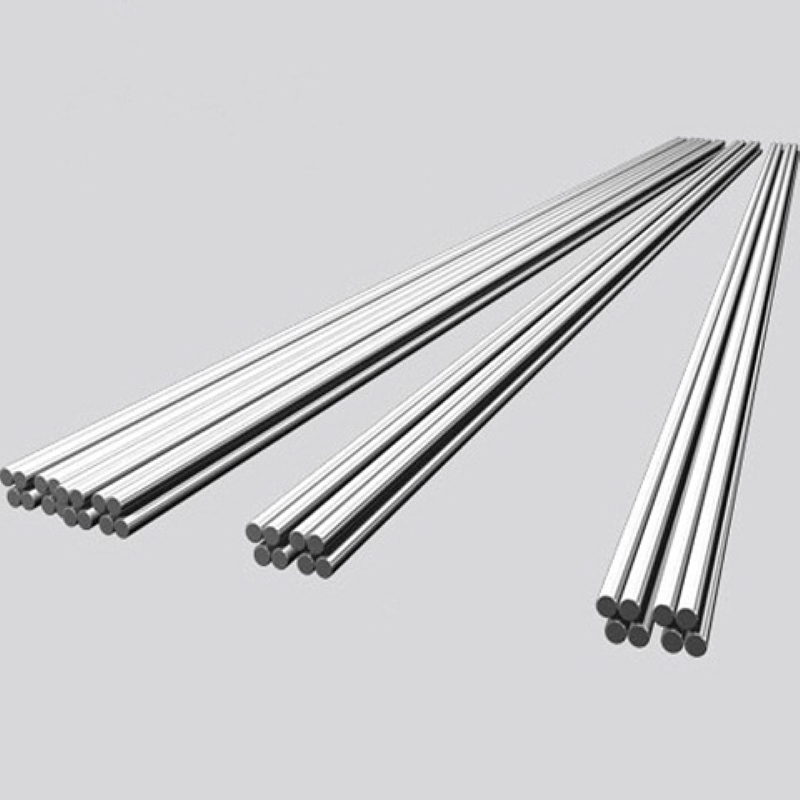

| Rod | √ |
| Sputtering Target | √ |
| Tube | √ |
Other: Spherical Indium Powder, Indium crucibles, Indium nuts, Indium bolts, Indium heating elements, and Indium shielding screens.
Chemical Composition:
| Purity | 4N | 4N5 |
| In | 99.99% | 99.995% |
| Impurities, ppm, max. | ||
| Cu | 5 | 5 |
| Pb | 10 | 5 |
| Zn | 15 | 5 |
| Cd | 15 | 5 |
| Fe | 8 | 5 |
| Tl | 10 | 5 |
| Sn | 15 | 10 |
| As | 5 | 5 |
| Al | 7 | 5 |
Properties (Theoretical)
| Molecular Weight | 114.82 |
| Appearance | solid |
| Melting Point | 156.6 °C |
| Boiling Point | 2080 °C |
| Density | 7310 kg/m3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 8.37 microhm-cm @ 20 °C |
| Electronegativity | 1.7 Paulings |
| Heat of Fusion | 0.781 Cal/gm mole |
| Heat of Vaporization | 53.7 K-Cal/gm atom at 2080 °C |
| Poisson's Ratio | 0.4498 |
| Specific Heat | 0.056 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.818 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 32.1 µm·m-1·K-1 |
| Vickers Hardness | <10 |
| Young's Modulus | 11 GPa |
Applications of Indium Foil
Indium foil is commonly used as a contactor for linear ultrasonic retarding. The most important applications of indium are in the semiconductor industry and radio electronics.
Packing of Indium Foil
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Indium Foil is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | In |
| CAS | 7440-74-6 |
| MDL Number | MFCD00134048 |
| EC No. | 231-180-0 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 5359967 |
| SMILES | [In] |
| InchI Identifier | InChI=1S/In |
| InchI Key | APFVFJFRJDLVQX-UHFFFAOYSA-N |
