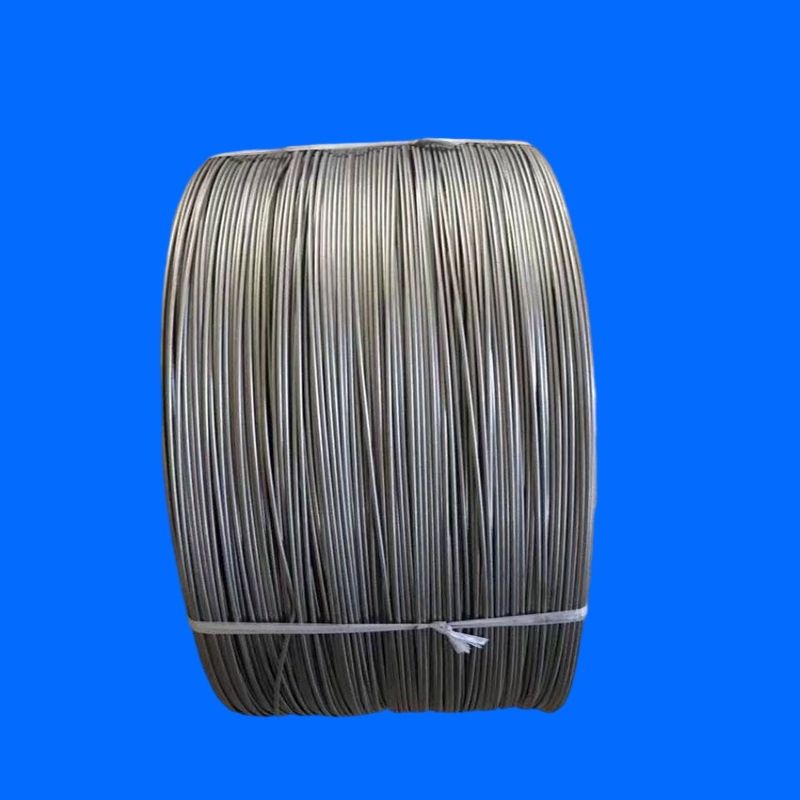

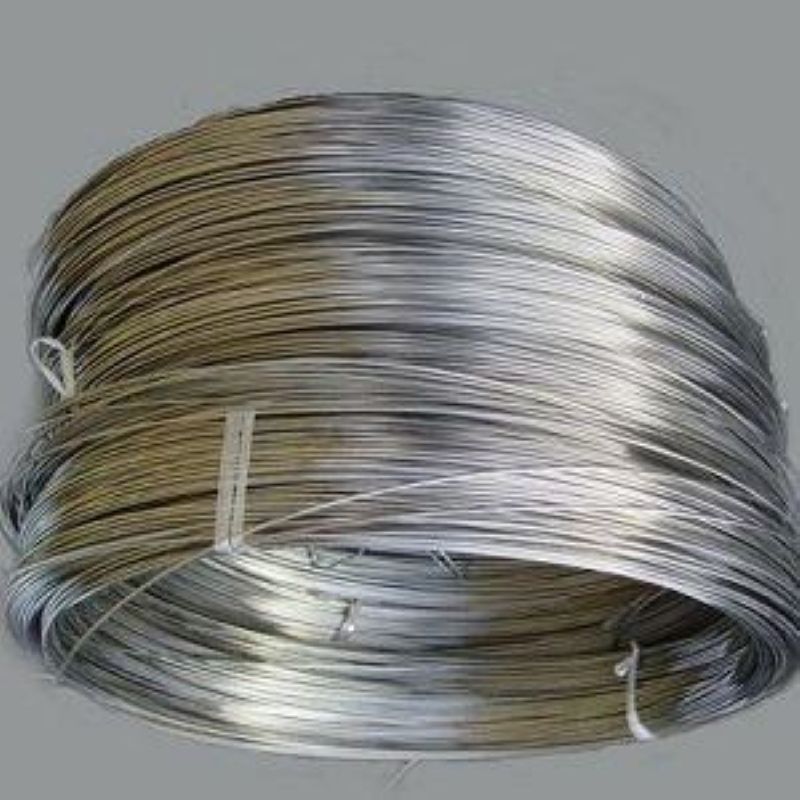

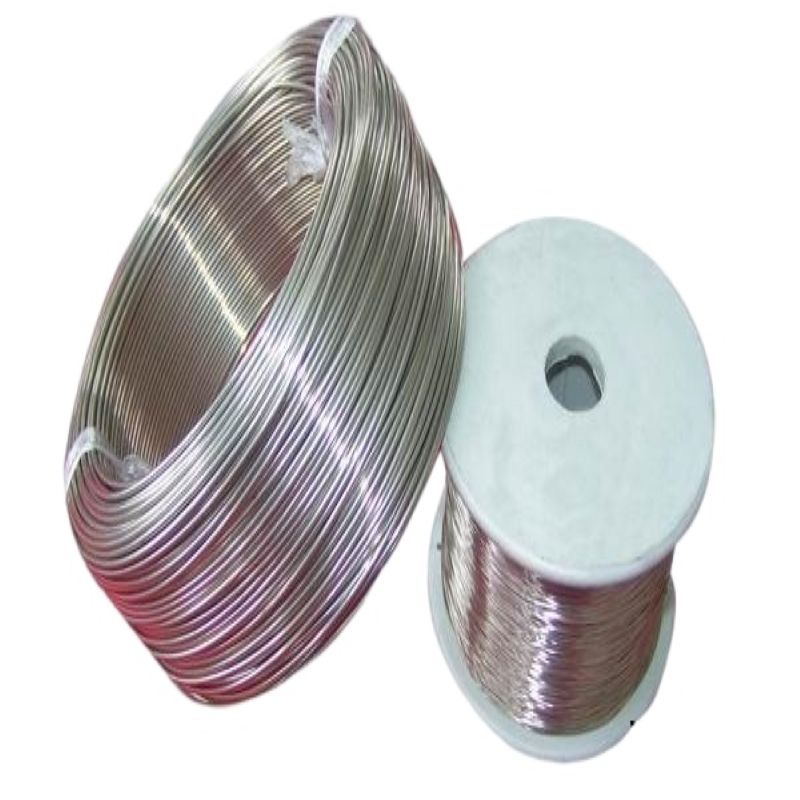

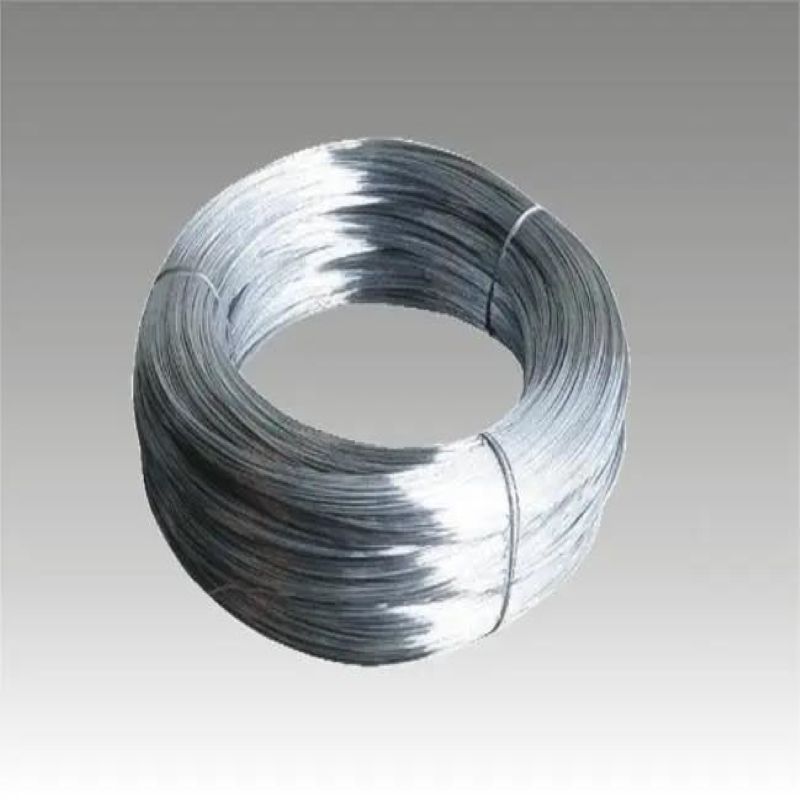

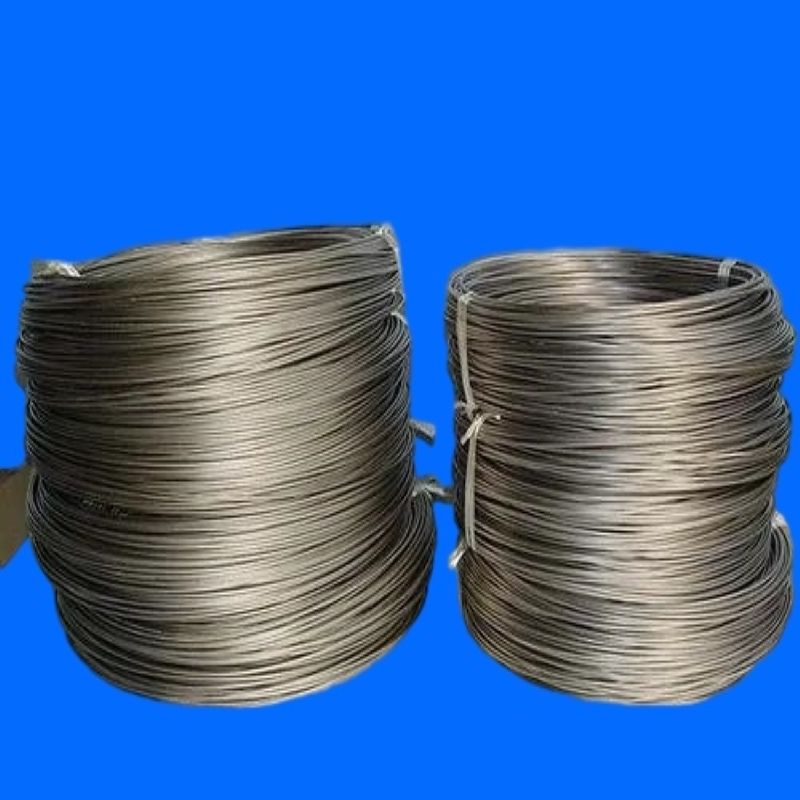

Hafnium Wires

产品代码 : ME-Hf-Hf+Zr>99.95%-WI

Hafnium (Hf) is a shiny/silvery and ductile metal that is corrosion-resistant and chemically similar to the zirconium. It is an important material in the atomic energy industry and it can be used as the cathode of the X-ray tube in the electrical industry. Hafnium wire is drawn from high-purity hafnium metal. As hafnium has a great ability to shed electrons into the air and has a high melting point,The main industrial application of hafnium wire is as a plasma emitter for plasma cutting machine electrodes. Hafnium can also be used as the adding elements in heat-resistant alloys, such as tungsten, molybdenum and tantalum alloys. We can offer the hafnium wire (Hf Wire) with various dimensions.

Product Information

Synonyms

10200, 10205, 13305, 13435, 42982

Hafnium Wires Specification

Material: Hf+Zr>99.95%, Zr<1%
Standard: ASTM B 737
Dimensions: Diameter 0.2-10mm
Chemical Composition: Hf+Zr>99.95%

Dimensions

Diameter	Diameter: .04’’ -.24’’ X L
Diameter	Diameter: 0.2mm-10mmX L

Chemical Compositions

Element	Concentration(ppm,wt)	Element	Concentration(ppm,wt)
Li	< 0.005	Pd	< 0.05
Be	< 0.001	AÇ	< 0.05
B	< 0.005	Cd	< 0.05
C	-	In	< 0.005
N	-	Sn	< 0.01
O	-	Sb	< 0.01
F	< 0.05	Te	< 0.05
Na	< 0.01	I	< 0.05
MÇ	< 0.01	Cs	< 0.005
Al	1.8	Ba	< 0.005
Si	2.7	La	< 0.005
P	0.006	Ce	< 0.005
S	0.26	Pr	< 0.005
Cl	0.02	Nd	< 0.005
K	< 0.05	Sm	< 0.005
Ca	< 0.05	Eu	< 0.005
Sc	<= 6*	Gd	< 0.005
Ti	0.13	Tb	< 0.005
V	< 0.005	Dy	< 0.005
Cr	0.10	Ho	< 0.005
Mn	0.06	Er	< 0.005
Fe	1.6	Tm	< 0.005
Co	0.02	Yb	< 0.005
Ni	0.15	Lu	< 0.005
Cu	0.03	Hf	Matrix
Zn	< 0.05	Ta	< 5
Ga	< 0.01	W	0.02
Ge	< 0.01	Re	< 0.05
As	< 0.005	Os	< 0.01
Se	< 0.05	Ir	< 0.05
Br	< 0.005	Pt	< 0.2
Rb	< 0.005	Au	< 0.05
Sr	< 0.01	HÇ	< 0.05
Y	< 0.01	Tl	< 0.005
Zr	- 0.81 wt%	Pb	< 0.005
Nb	< 1	Bi	< 0.005
Mo	1.0	Th	< 0.001
Ru	< 0.005	U	0.002
Rh	< 0.01

Hafnium (Hf) Wire Physical Properties

Appearance	Silver
Melting Point	2227 °C
Boiling Point	4602 °C
Density	13.31 g/cm³
Solubility in H2O	N/A
Electrical Resistivity	35.1 microhm-cm @ 25 °C
Electronegativity	1.3 Paulings
Heat of Fusion	6.0 Cal/gm mole
Heat of Vaporization	155 K-Cal/gm atom at 4602 °C
Poisson's Ratio	0.37
Specific Heat	0.035 Cal/g/K @ 25 °C
Tensile Strength	N/A
Thermal Conductivity	0.230 W/cm/K @ 298.2 K
Thermal Expansion	(25 °C) 5.9 µm·m^-1·K^-1
Vickers Hardness	1760 MPa
Young's Modulus	78 GPa
Melting Point	2506 K (2233°C, 4051°F)
Boiling Point	4876 K (4603°C, 8317°F)
Heat of Fusion	27.2 kJ/mol
Heat of Vaporization	648 kJ/mol
Molar Heat Capacity	25.73 J/(mol•K)

Hafnium (Hf) Wire Applications:

Used for producing super alloys

Used as solder

Used as a plasma emitter in plasma cutting

Used in plasma cutting electrode (Cutted hafnium wire could be insert into copper parts to make a cutting tip for the plasma cuter.)

Recently, scientists at Intel and IBM found hafnium-based compounds can be applied in gate insulators to make the processors even smaller.

Hafnium (Hf) Wire Packaging

Standard Packing: In Coils or on Spools, and loaded in the Wooden Box or the Carton Box.

Our Hafnium Wires are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers

Linear Formula	Hf
MDL Number	MFCD00011032
EC No.	231-166-4
Beilstein/Reaxys No.	N/A
CAS	7440-58-6
Pubchem CID	23986
SMILES	[Hf]
InchI Identifier	InChI=1S/Hf
InchI Key	VBJZVLUMGGDVMO-UHFFFAOYSA-N

产品	产品代码	纯度	尺寸	联系我们
Hafnium Wires	ME-Hf-Hf+Zr>99.95%-WI	Hf+Zr>99.95%	Customize
