产品代码 : 3D-Ti-CU-PO1

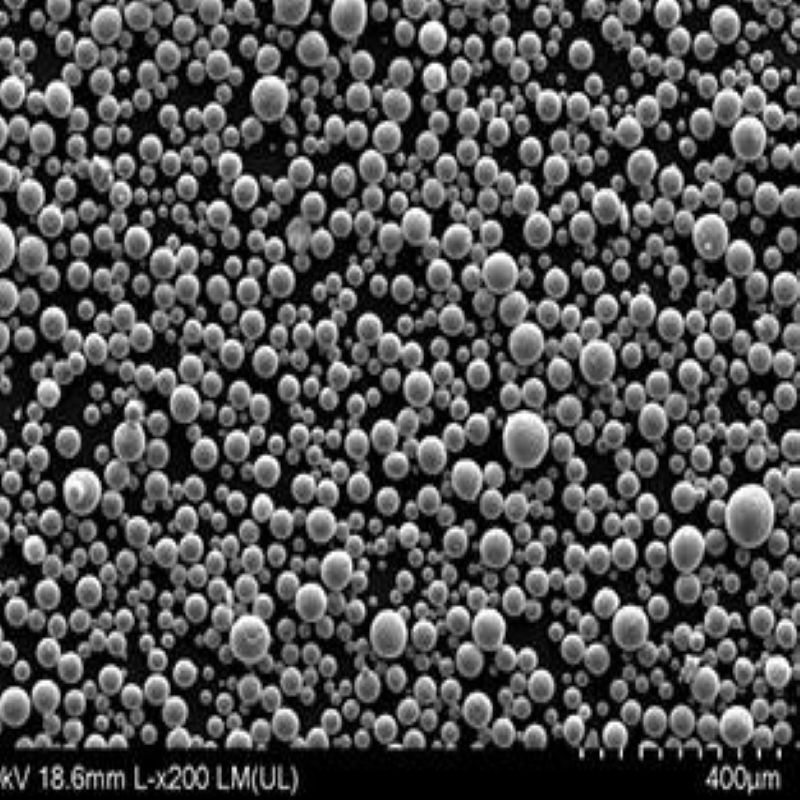

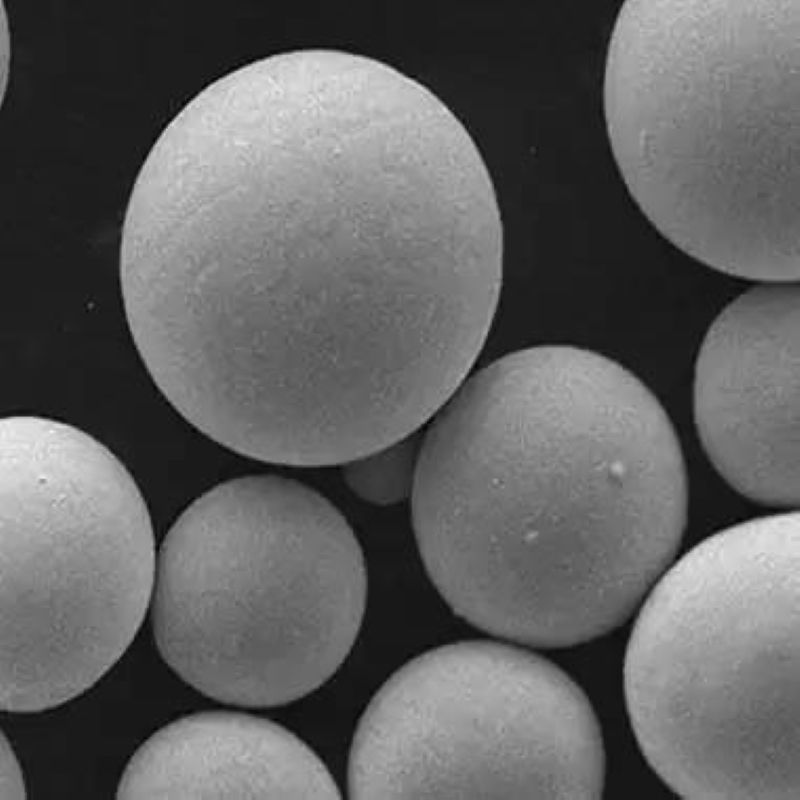

Spherical titanium powder has the characteristics of high purity, good sphericity, no satellite ball, excellent fluidity, large loose density, no hollow powder, and so on. Titanium has outstanding biocompatibility and excellent mechanical properties. . It is widely used in biomedical, aerospace, 3C electronics and other fields.
Synonyms: Ti spherical particles, titanium spherical powder
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Spherical Titanium Powder Characteristics
High purity (99.5% min.)
Low oxygen (can be less than 1500 ppm)
High sphericity (90% min.)
Smooth surface, no satellite
Uniform particle size distribution, excellent flowability (Hall Flow Rate ≤25.0 s/50 g)
High bulk density (≥2.3 g/cm3) and tap density (≥ 2.9 g/cm3)
Spherical Titanium Powder Particle Size
0-15μm, 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 45-150μm, 75-150μm.
(Various granularities can be customized according to customer requirements)
Spherical Titanium Powder Applicable processes
Laser/electron beam additive manufacturing (SLM/EBM, 3D printing)
Direct laser deposition (DLD)
Powder hot isostatic pressing (HIP)
Metal injection molding (MIM)
Powder metallurgy (PM)
Laser cladding (LC), etc.
Spherical Titanium Powder Chemical Composition
| Chemical Composition by ICP-AES: | Wt % |
| Ti | 99.5% min. |
| Fe | ＜0.01 |
| Cr | ＜0.001 |
| Cu | ＜0.01 |
| Mo | ＜0.001 |
| Si | ＜0.02 |
| Mn | ＜0.01 |
| Mg | ＜0.01 |
| Gas Impurities | |
| O | ≤0.15 |
| N | ≤0.02 |
| C | ≤0.005 |
| H | ≤0.015 |
Spherical Titanium Powder Physical Properties
| Form: | Powder | ||
| Color: | Black grey | ||
| Melting Point: | 1660°C | ||
| Boiling Point: | 3287°C | ||
| Density: | 4.5 g/cm3 | ||
| Density (g/cm3) | Hall Flow Rate (s/50g) | ||
| Apparent Density | Tap Density | Value | |
| >2.1 | >2.8 | </= 25.0 | |

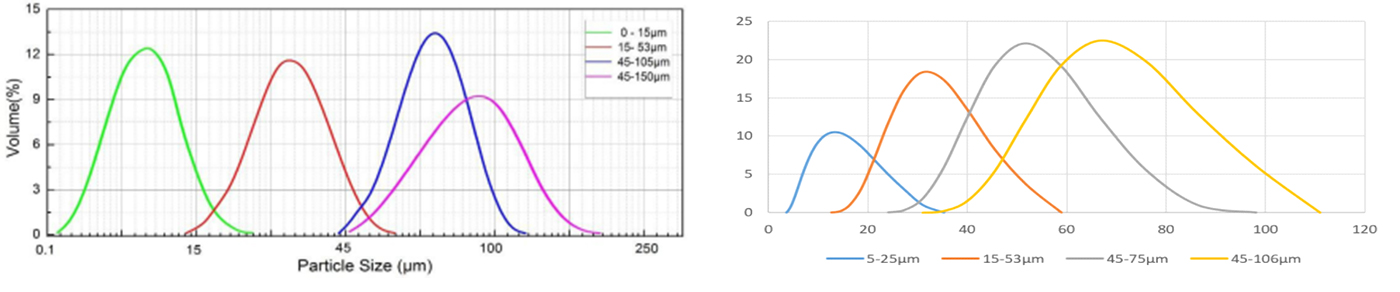

Spherical Titanium Powder Particle Size Description
● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)
● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)
● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)
● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)
● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)
● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)
● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)
● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)
(Various granularities can be customized according to customer requirements)
Spherical Titanium Powder Packaging
Standard Packing: Vacuum packaging, 1 kg/bag or 2 kg/bag. Iron drums lined with a plastic bag, 25 kg/drum. Special package is available on request.
Chemical Identifiers
| Linear Formula | Ti |
| MDL Number | MFCD00011264 |
| CAS | 7440-32-6 |
| EC No. | 231-142-3 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23963 |
| SMILES | [Ti] |
| InchI Identifier | InChI=1S/Ti |
| InchI Key | RTAQQCXQSZGOHL-UHFFFAOYSA-N |
