产品代码 : 3D-NiTi-CU-PO1

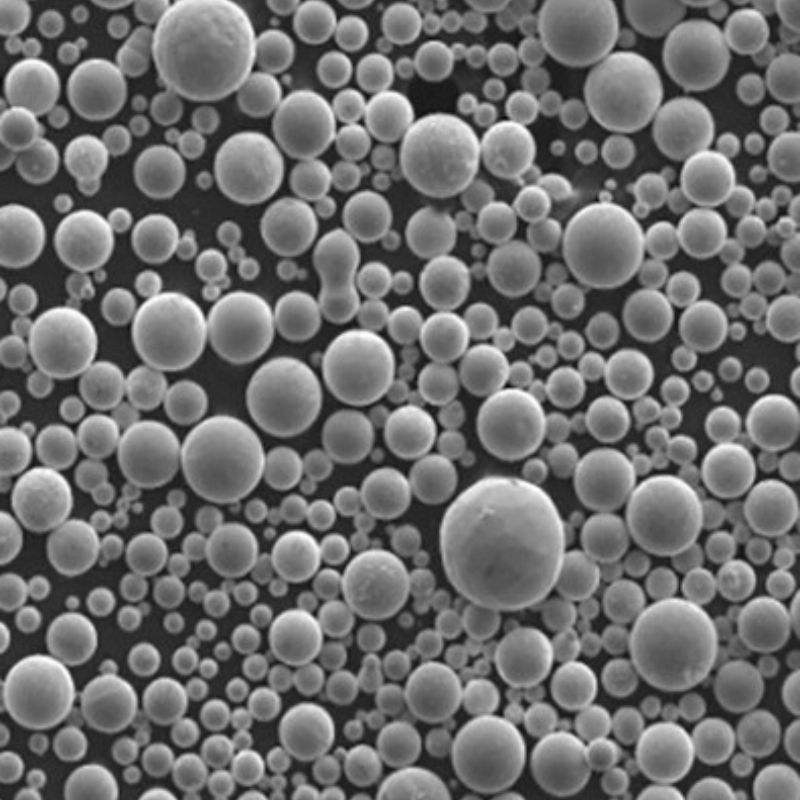

Spherical nickel-titanium alloy powder has the characteristics of high purity, low oxygen, high sphericity , smooth surface, no satellite ball, uniform particle size distribution, with excellent flow performance.
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
Spherical Nitinol Powder Particle Size
0-15μm, 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm(Various granularity can be customized according to customer requirements)
Spherical Nitinol Powder Characteristics
High purity (≥99.9%), low oxygen (≤1000ppm), high sphericity (≥90%), smooth surface, no satellite ball, uniform particle size distribution, with excellent flow performance (≤ 30.0S /50g).
Spherical Nitinol Powder Applicable Process
Laser/electron beam additive manufacturing (SLM/EBM), laser direct deposition (DLD), powder hot isostatic pressing (HIP), metal injection molding (MIM), powder metallurgy (PM), laser cladding (LC), and other processes.
Spherical Nitinol Powder Chemical Composition
Spherical Nitinol Powder Particle Size Description
● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)
● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)
● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)
● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)
● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)
● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)
● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)
● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)
Spherical Nitinol Powder Application
Nickel-titanium alloy is a shape memory alloy, with shape memory, superelasticity, corrosion resistance, anti-toxicity, soft correction, and good shock absorption characteristics, and other advantages. Spherical nickel-titanium alloy powder has the characteristics of controllable composition, high sphericity, good fluidity, low oxygen content, few satellite spheres, and full density inside the particle, etc., and is widely used in the fields of biological medicine, aerospace, national defense, and military industry.
Packing of Spherical Nitinol Powder
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Spherical Nitinol Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
