产品代码 : 3D-CuCr1Zr-CU-PO1
CuCr1Zr is a hardenable copper alloy, which combines high strength and hardness with very good thermal resistance. It has good thermal and electrical conductivity. Furthermore, its characterized by good wear resistance. It is used for machinery construction and electrical applications, mold cooling inserts, and high-performance applications in the aerospace or automotive industry.
如果您需要定制服务，请联系我们。 我们将在 24 小时内与您联系并告知价格和可用性。
| 产品 | 产品代码 | 纯度 | 尺寸 | 联系我们 |
CuCr1Zr Spherical Powder Synonyms
C1815, C18150, Chrome Copper Zirconium Alloy, copper-chromium-zirconium, CuCrZr, CuCr1Zr, CW106C, C18150, CCZ
CuCr1Zr Spherical Powder Characteristics
Chemical Composition [ wt.% ] :
Element Min Max
Cr 0.5 1.2
Zr 0.03 0.3
Fe 0.08
Si 0.1
Other 0.2
Cu Balance Balance
CuCr1Zr Spherical Powder Particle Size
0-15μm, 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm. (Various granularities can be customized according to customer requirements

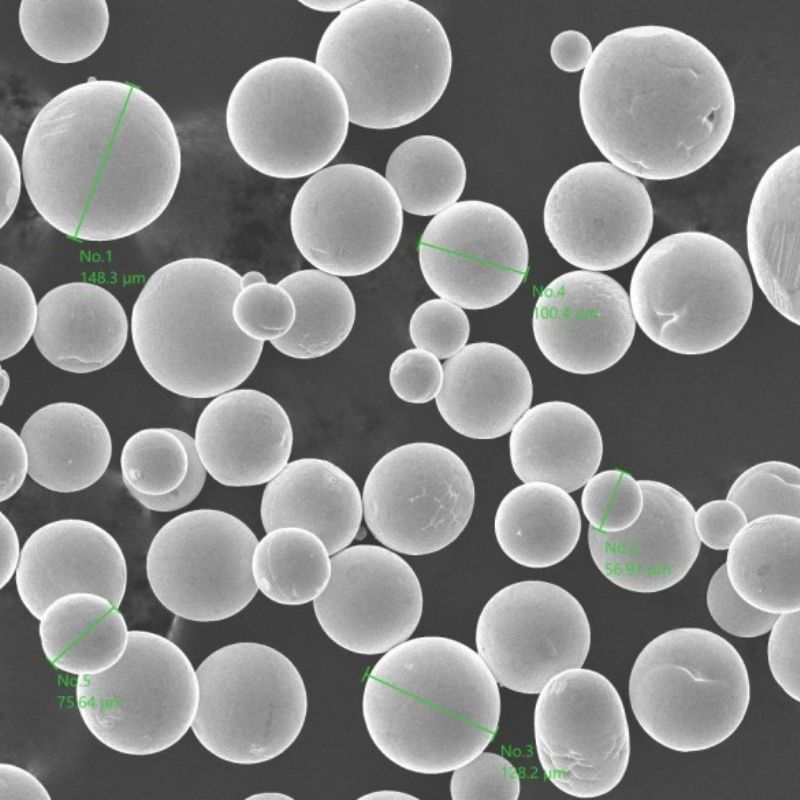

Spherical Copper Alloy Powder Particle Size Description
● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)
● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)
● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)
● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)
● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)
● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)
● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)
● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)
Other Copper Based Alloys
| Copper Based Alloys | ||
| Standard | Nominal Composition | Application |
| C70320 CW112C | CuNi3Si | High Conductibility |
| C18000 CW111C | CuNi2SiCr | High Conductibility |
| C18150 CW106 | CuCrZr | Wear Resistance |
| OFHC Cu | Cu 99.99% O＜300 ppm | Highest Level of Purity |
| OFHC Cu | Cu High Oxygen | Modified for Specific Laser |
| CWx (Modified) | Adjusted Composition | Customer Specific |
Spherical Copper Alloy Powder Applicable processes
-Laser/electron beam additive manufacturing (SLM/EBM)
-Injection molding (MIM)
-Hot isostatic pressing (HIP)
-Powder metallurgy (PM)
-Spraying (SP) and other processes.
Spherical Copper Alloy Powder Application
It is used for machinery construction and electrical applications, mold cooling inserts, and high-performance applications in the aerospace or automotive industry.
Packing of Spherical Copper Alloy Powder
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Spherical Copper Alloy Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
